DC97-16782A 6602-001655 DC96-00882C Dryer Maintenance Kit (4) for Samsung

by PRYSM
1 review
$56.99
SKU DC97-16782A(4) KIT

UPC #: 810019172298

Description

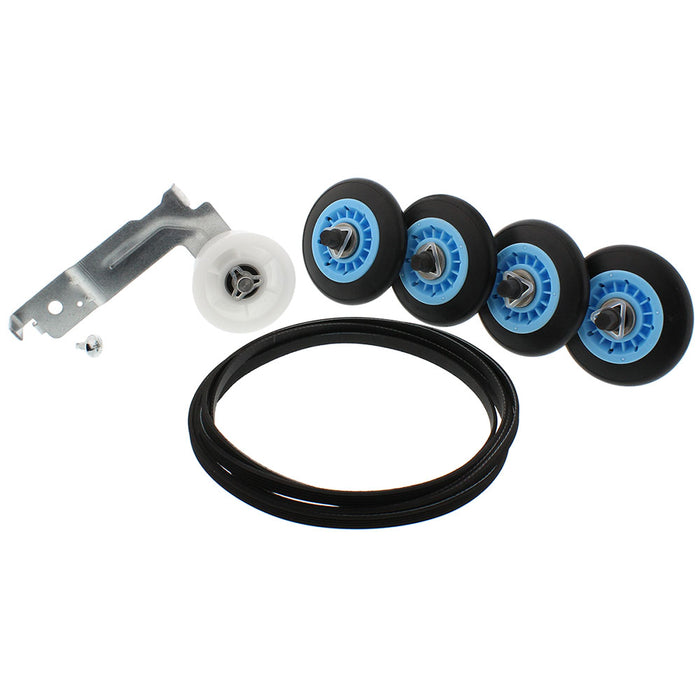

  • This kit comes with 4 Dryer Rollers (DC97-16782A), 1 Dryer Belt (6602-001655) and 1 Idler Pulley (DC96-00882C).
  • Cross Reference Information for DC97-16782A (Dryer Roller):
    DC97-16782A, AP5325135, 2027851, DC97-07523A, DC97-07523B.
  • Cross Reference Information for 6602-001655 (Dryer Belt):
    935594, 6602-001314, PS4133825, B001KGX5G4, 6602-001655, AP4373659, 6602-001314, 1935594.
  • Cross Reference Infomation for DC96-00882C (Idler Pulley):
    DC96-00882C, DC96-00882B, PS11771601, B06XKB5FSL.
  • Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
  • Compatible with the following Dryer brands: Samsung

Model Numbers

 For DC97-16782A, click here then click on Model Numbers tab below the product pictures.

 For 6602-001655, click here then click on Model Numbers tab below the product pictures.

 For DC96-00882C, click here then click on Model Numbers tab below the product pictures.

Installation Instructions

Installation Instructions

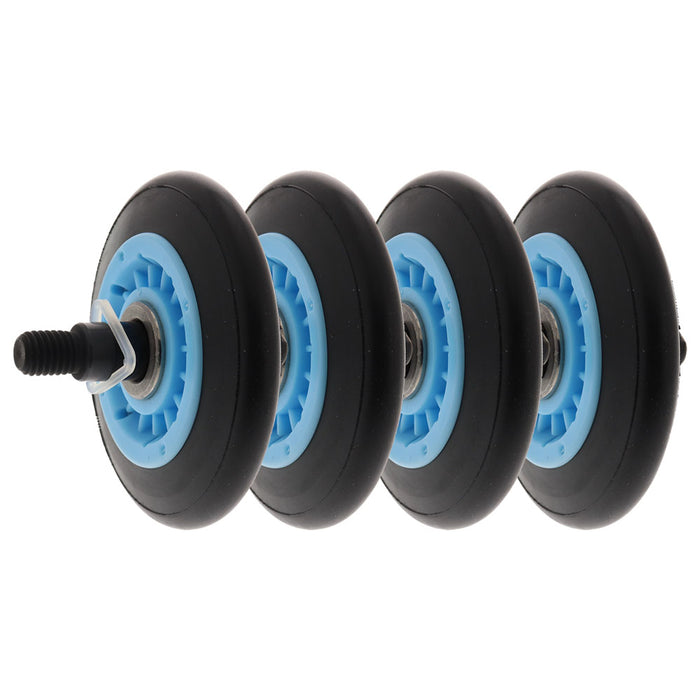

For DC97-16782A (Drum Roller):

  1. Unplug appliance and/or turn off circuit breakers to prevent electrocution.
  2. Remove screws securing the top panel. Remove the top panel by pulling then lifting. Set aside.
  3. Remove locking tabs securing the control panel, disconnect wire harness and set aside.
  4. Open dryer door and remove the two screws at the bottom. Remove the upper four screws that secure the front panel. Grab front panel and lift to release it from the two locking tabs. Disconnect the door switch wire harness. Release it from the three mounting brackets from the bottom.
  5. Remove the panel that holds the control panel by unscrewing the screws. Disconnect the light bulb wire harness and release it from the plastic retainer. Slightly pull panel and have it at an angle, release the wire harnesses from the plastic retainers, set aside.
  6. Next, is removing the bulk head from the blower housing by unscrewing the screw. Then, disconnect the moisture sensor wire harness on the other side.
  7. Remove the four screws that secure the bulk head to the cabinet, lift front bulk head off the cabinet. There are two rollers on the front bulk head, if those are the ones that have to be changed then continue to step 11. If the ones on the back of the drum are the ones that have to be changed then continue to step 8.
  8. Reach in on the drum on each side, grab the idler pulley, pull it toward the outside of the machine to release the tension of the belt. Lift the belt to guide the drum out of the machine.
  9. Next, remove the heating element of the dryer. On the left side of the dryer there is a water valve, using a wrench remove the water valve that is connected to the steam sprayer. Be sure to place a towel underneath.
  10. On the upper left-hand side of the dryer there is a wire harness to remove from the plastic retainer clips, remove the six screws securing the bulk head. Lift the rear bulk head off the mounting tabs and set aside for replacement.
  11. To replace the roller that has the lint filter duct right behind it, take a wrench instead of a socket to reach in to take the nut off and with an 8 mm socket hold down the shaft at the same time. For the others, use a 17 mm socket on the back side and on the front hold it down with an 8 mm socket and snap it out. Be careful not to lose any pieces.
  12. To install the new rollers, place the metal washer first then, place the new roller, and then place the other metal washer first then the nut on the other side and tighten with 8 mm socket on top and 17 mm socket on the bottom. Install any new rollers needing to install.
  13. ­­If you only had to change the rollers on the front bulk head then continue to step ­­15.
    If you had to change the rollers on the rear of the machine, carefully replace the rear bulk head, hook into tabs, reconnect wire harness into the plastic retainer clips, replace screws. Reattach water valve hose. Reposition heating element and secure with screw.
  1. Place drum back into the machine by guiding it with the belt. Set the belt in place making sure the ridges are facing the drum. Reach in to route the belt through the pulleys. Grab the idler pulley and pull it toward the outside of the machine. Then, place the belt on the idler pulley.
  2. Place the front bulk head by locking it in the tabs of the left side of machine, align the drum with the front bulk head making sure the drum goes over the rollers. Secure it in the locking tabs on the other side. Replace all screws along with the blower housing screw.
  3. Reconnect moisture sensor wire harness. Replace the wire harnesses in the plastic retainer clips. Reconnect the light bulb wire harness. The door switch wire harness will be connected after control panel is replaced.
  4. Reattach the front panel, replace the wire harnesses onto the plastic retainer clips. Make sure the front panel goes in the locking tabs. Secure with screws.
  5. Reconnect door switch wire harness. Place front panel on making sure it is locked in the locking tabs. Secure with screws. Open door to replace screws.
  6. Then, reattach the control panel by first reconnecting the wire harness then placing the panel on the locking tabs and then snapping it into place. Reattach the top panel and secure it with screws.
  7. Plug in appliance and installation is complete.
    Tools Needed:
  • Screwdriver
  • Wrench
  • 17mm socket
  • 8mm socket

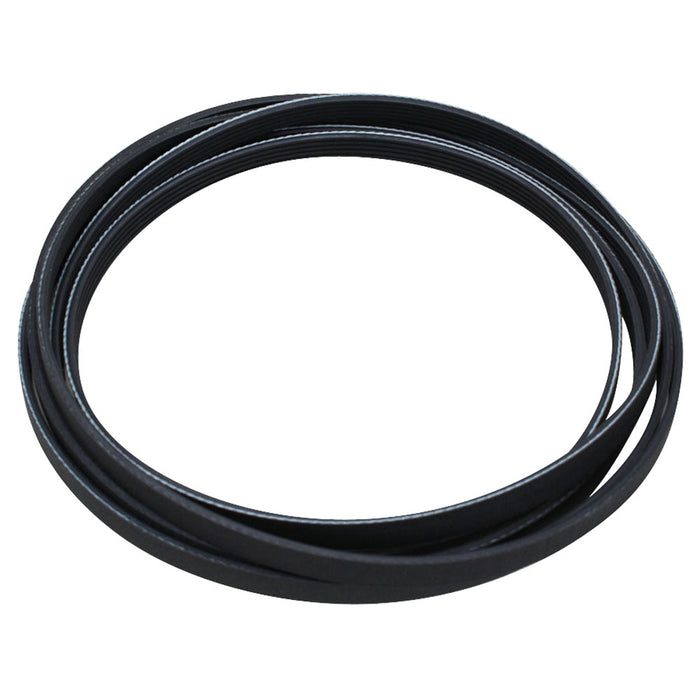

For 6602-001655 (Dryer Belt):

  1. Unplug appliance and/or turn off circuit breakers to prevent electrocution.
  2. Remove screws securing the top panel. Remove the top panel by pulling then lifting. Set aside.
  3. Remove locking tabs securing the control panel, disconnect wire harness and set aside.
  4. Open dryer door and remove the two screws at the bottom. Remove the upper four screws that secure the front panel. Grab front panel and lift to release it from the two locking tabs. Disconnect the door switch wire harness. Release it from the three mounting brackets from the bottom.
  5. Remove the panel that holds the control panel by unscrewing the screws. Disconnect the light bulb wire harness and release it from the plastic retainer. Slightly pull panel and have it at an angle, release the wire harnesses from the plastic retainers, set aside.
  6. Next, is removing the bulk head from the blower housing by unscrewing the screw. Then, disconnect the moisture sensor wire harness on the other side.
  7. Remove the four screws that secure the bulk head to the cabinet, lift front bulk head off the cabinet and set aside.
  8. Next, reach in on the drum on each side, grab the idler pulley, pull it toward the outside of the machine to release the tension of the belt. Once done, slightly lift the drum and remove the belt off.
  9. To replace the drum belt, slightly lift the drum and place in the new belt. Set the belt in place making sure the ridges are facing the drum. Reach in to route the belt through the pulleys. Grab the idler pulley and pull it toward the outside of the machine. Then, place the belt on the idler pulley.
  10. Next, place the front bulk head by locking it in the tabs of the left side of machine, align the drum with the front bulk head making sure the drum goes over the rollers. Secure it in the locking tabs on the other side. Replace all screws along with the blower housing screw.
  11. Reconnect moisture sensor wire harness. Replace the wire harnesses in the plastic retainer clips. Reconnect the light bulb wire harness. The door switch wire harness will be connected after control panel is placed.
  12. Reattach the front panel, replace the wire harnesses onto the plastic retainer clips. Make sure the front panel goes in the locking tabs. Secure with screws.
  13. Reconnect door switch wire harness. Place front panel on making sure it is locked in the locking tabs. Secure with screws. Open door to replace screws.
  14. Then, reattach the control panel by first reconnecting the wire harness then placing the panel on the locking tabs and then snapping it into place. Reattach the top panel and secure it with screws.
  15. Plug in appliance and installation is complete.
    Tools Needed:
  • Screwdriver

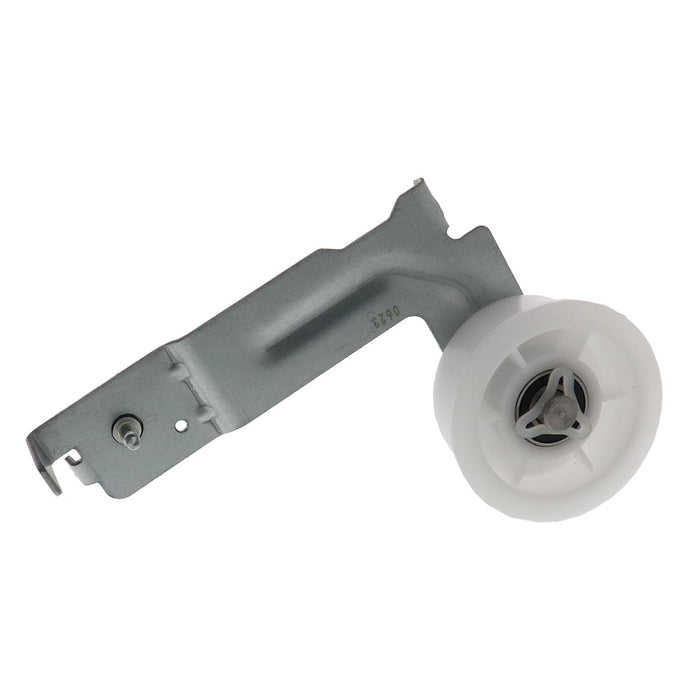

For DC96-00882C (Idler Pulley):

  1. Unplug appliance and/or turn off circuit breakers to prevent electrocution.
  2. Remove screws securing the top panel, pull and lift, set aside.
  3. To remove the console, there are three locking tabs on the top needed to release, lift each to release. Release locking tab of wire harness, pull the panel and set aside.
  4. Open dryer door and remove the two screws at the bottom. Remove the upper four screws that secure the front panel. Grab front panel and lift to release it from the two locking tabs. Disconnect the door switch wire harness. Release it from the three mounting brackets from the bottom.
  5. Remove the panel that holds the control panel by unscrewing the screws. Disconnect the light bulb wire harness and release it from the plastic retainer. Slightly pull panel and have it at an angle, release the wire harnesses from the plastic retainers, set aside.
  6. Next, is removing the bulk head from the blower housing by unscrewing the screw. Then, disconnect the moisture sensor wire harness on the other side.
  7. Remove the four screws that secure the bulk head to the cabinet, lift front bulk head off the cabinet.
  8. Reach in on the drum on each side, grab the idler pulley, pull it toward the outside of the machine to release the tension of the belt. Lift the belt to guide the drum out of the machine.
  9. To remove the idler pulley, remove the spring that places tension onto it by sliding it downward. Remove the screw that holds the idler assembly. Remove the old assembly.
  10. To place in the new idler pulley, align the tab in the slot, align the holes and replace screws. Replace the spring. Make sure there is tension onto the pulley.
  11. Place drum back into the machine by guiding it with the belt. Set the belt in place making sure the ridges are facing the drum. Reach in to route the belt through the pulleys. Grab the idler pulley and pull it toward the outside of the machine. Then, place the belt on the idler pulley.
  12. Place the front bulk head by locking it in the tabs of the left side of machine, align the drum with the front bulk head making sure the drum goes over the rollers. Secure it in the locking tabs on the other side. Replace all screws along with the blower housing screw.
  13. Reconnect moisture sensor wire harness. Replace the wire harnesses in the plastic retainer clips. Reconnect the light bulb wire harness. The door switch wire harness will be connected after control panel is replaced.
  14. Reattach the console, replace the wire harnesses onto the plastic retainer clips. Make sure the front panel goes in the locking tabs. Secure with screws. Reconnect door switch wire harness. Place front panel on making sure it is locked in the locking tabs. Secure with screws. Open door to replace screws.
  15. Then, reattach the control panel by first reconnecting the wire harness then placing the panel on the locking tabs and then snapping it into place. Reattach the top panel and secure it with screws.
  16. Plug in appliance and the dryer is set to go!
    Tools Needed:
  • Screwdriver
  • Small flat head screwdriver
