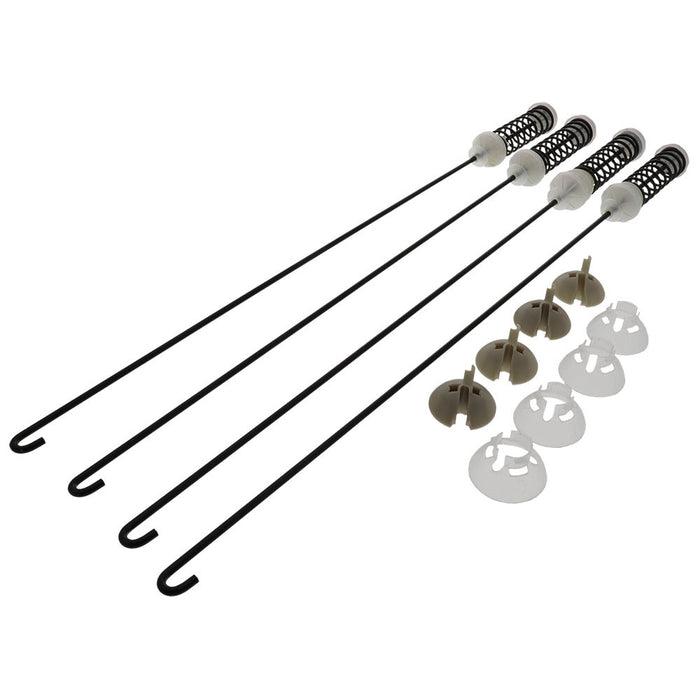

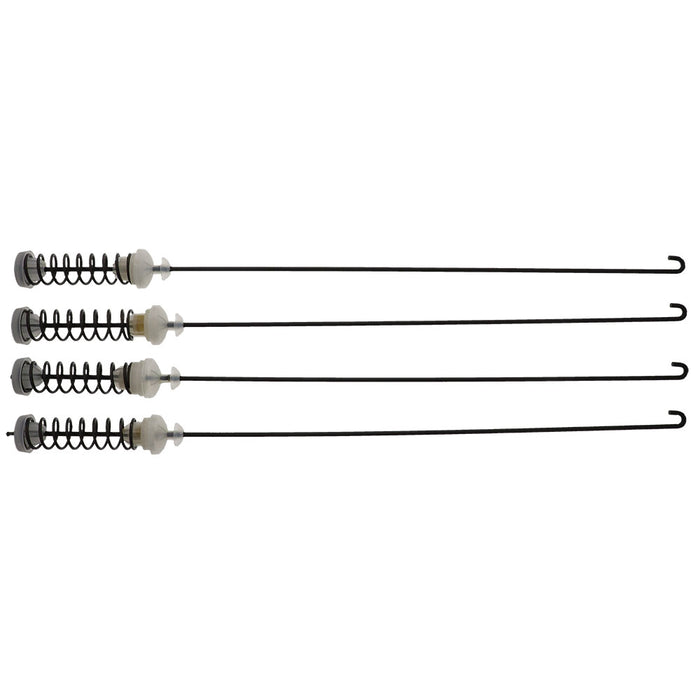

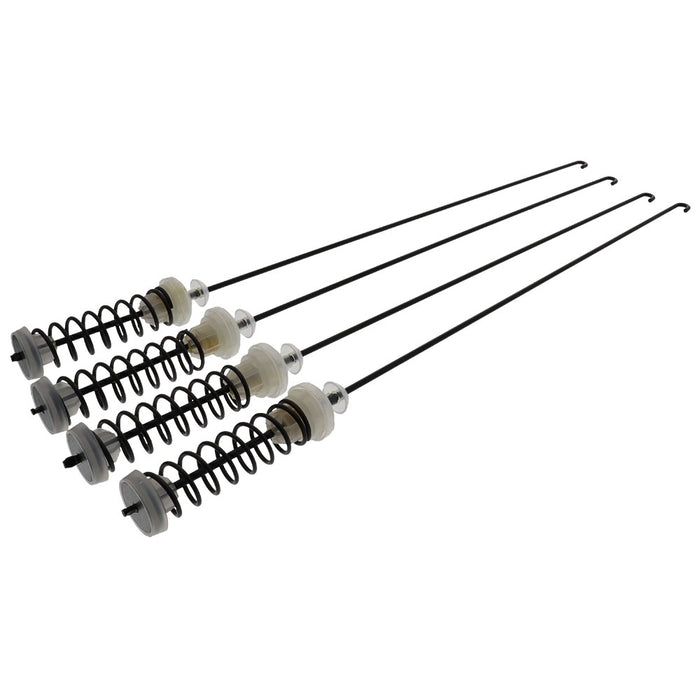

W10780048 Suspension Rod Kit

by PRYSM
$29.99
SKU W10780048

Description

  • This Suspenstion Support Rod Directly Replaces the following Part #'s: W10780048, W10349191, PS11703290, W10349193, B010JRV0UM, B0156NFHK8, B00TQWDX1G, B008DJNZE8, B01EZOJLZQ, B00LQDEZBU.
  • Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
  • Compatible with the following Washer brands:  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others

Model Numbers

Use ctrl+F then enter your model number in search bar and hit enter

110.2002201 1CWTW4740YQ0 7MWTW1709YM1 WTW4930XW1
110.2002201 1CWTW4740YQ0 7MWTW1709YM1 WTW4930XW1
110.2002201 1CWTW4840YW0 7MWTW1710YM0 110.2002201
110.2002201 1CWTW4840YW0 7MWTW1710YM0 110.2002201
110.2110201 2DWTW4740YQ0 7MWTW1710YM1 110.2002201
110.2110201 2DWTW4740YQ0 7MWTW1710YM1 110.2022251
110.2110201 2DWTW4800YQ0 WTW4750YQ0 110.2022251
110.2110201 2DWTW4800YQ0 WTW4750YQ0 110.2110201
110.2111201 7EWTW1300YM0 WTW4750YQ1 110.2110201
110.2111201 7EWTW1300YM0 WTW4750YQ1 110.2118201
110.2111201 7EWTW1409YM0 WTW4800XQ0 110.2118201
110.2111201 7EWTW1409YM0 WTW4800XQ0 110.2129201
110.2118201 7EWTW1509YM0 WTW4800XQ1 110.2129201
110.2118201 7EWTW1509YM0 WTW4800XQ1 110.507201
110.2118201 7EWTW1515YW0 WTW4800XQ2 110.5072011
110.2118201 7EWTW1515YW0 WTW4800XQ2 110.5072012
110.2120201 7EWTW1711YM0 WTW4820XQ0 110.514251
110.2120201 7EWTW1711YM0 WTW4820XQ0 110.5142511
110.2120201 7EWTW1715YW0 WTW4910XQ0 110.5142512
110.2120201 7EWTW1715YW0 WTW4910XQ0 7MKTWS300DW0
110.2129201 7MWTW1706YM0 WTW4910XQ1 7MWTW1604DM2
110.2129201 7MWTW1706YM0 WTW4910XQ1 7MWTW9919DM2
110.2129201 7MWTW1709YM0 WTW4930XW0
110.2129201 7MWTW1709YM0 WTW4930XW0

Installation Instructions

Installation Instructions for W10780048

Installation Instructions – Replacement Suspension Rod Kit for SNAP Supply, LLC’s products W10780048

Tools Needed:

Screwdriver

Pliers

  1. Unplug your washer.
  2. Disconnect the water lines going into and out of your washer.
  3. Tape the lid to keep it from opening.
  4. On the back of the washer, remove the 2 screws holding the hinge plates in place.
  5. Unscrew the wiring cover on the back of the washer and remove.
  6. Take the top of the washer off by pulling it forward then lifting up to disengage the hooks.
  7. Secure the top so it doesn’t fall.
  8. Remove the locking tab on the suspension rod by lifting up on the washer tub and twisting the suspension rod to let it fall through the locking tab.
    1. You may want to use pliers or clamps to assist with this.
  9. Drop the rod through the hole and remove from the washer.
  10. Repeat this process for all springs you are removing.
  11. To put the new suspension rod on, first thread it through the retaining hole, making sure to have the drum support spring on the suspension rod.

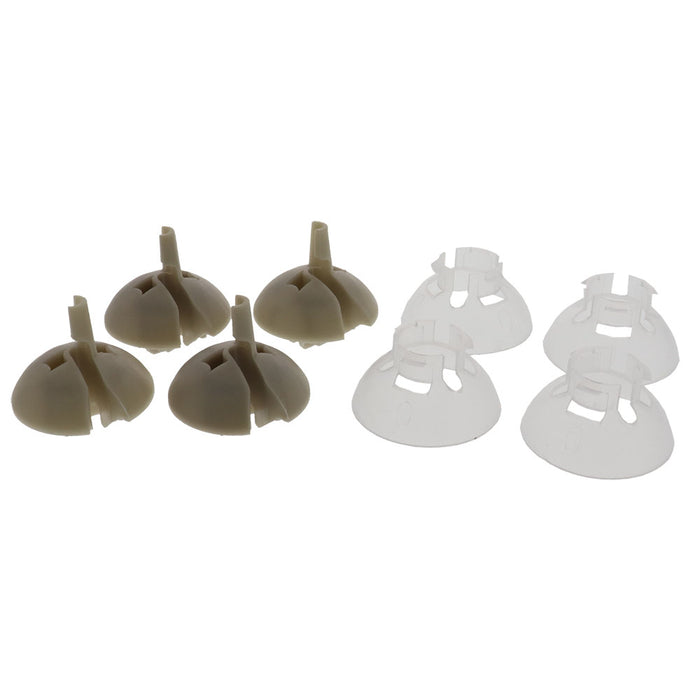

  12. Using the new locking cup, thread the suspension rod through the center, then twist to lock the rod into place on the cup.
  13. Lower the top assembly of the washer down and lock it back into place.
  14. Replace the back plates and screws of the washer.
  15. Remove the tape from the lid.
  16. Reconnect the water lines.
  17. Plug your washer back in.
