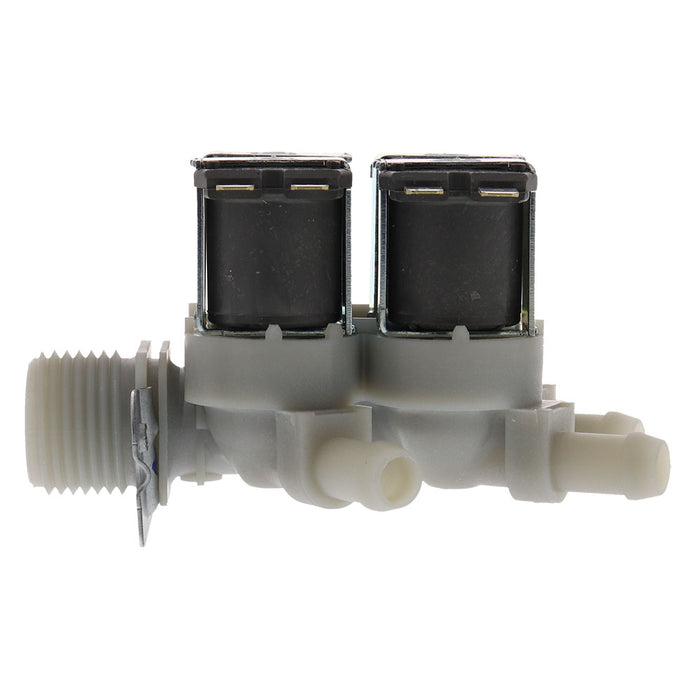

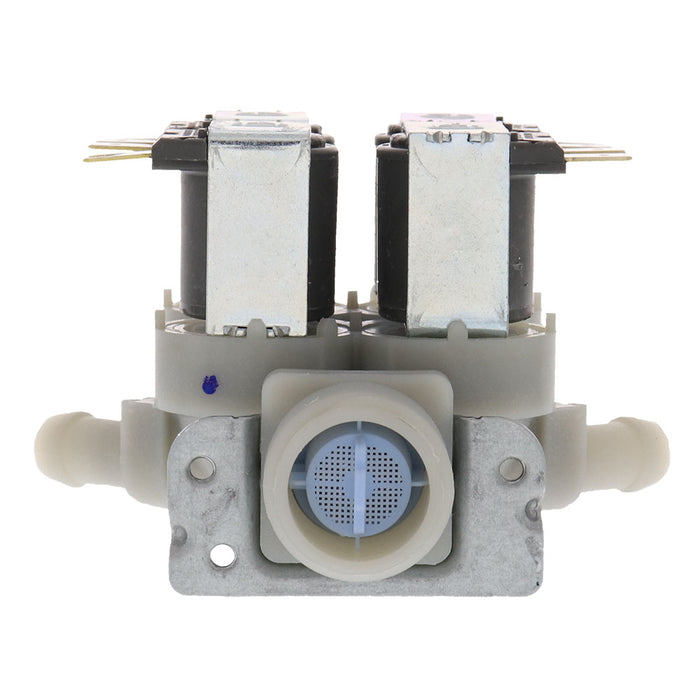

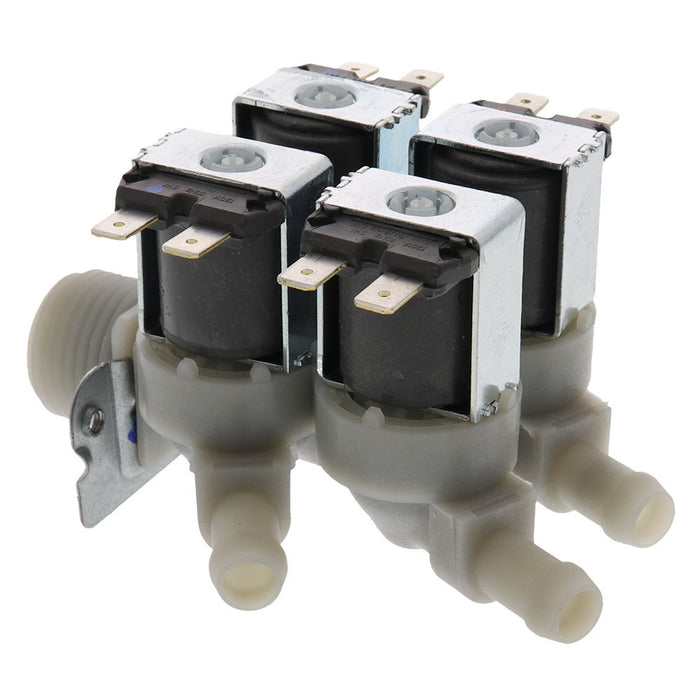

5220FR2008F Water Valve for LG

$30.20
SKU 5220FR2008F

Description

  • Cross Reference Information
    1268512, 5220FR2008L, 5221ER1002B, AH3527431, EA3527431, PS3527431, B00AUDAF5M
  • Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
  • Click here for installation instructions!
  • Compatible with the following Washer brands: LG

Model Numbers

Use ctrl+F then enter your model number in search bar and hit enter

79640441900
79640448900
79641022900
79641028900
79641029900
79641542110
79641548110
79641549110
79642192900
79642198900
79642199900
WM0001HTM
WM0001HTMA (ASTEEUS)
WM2450HRA
WM2487HRM (ACREEUS)
WM2487HRMA (ACREEUS)
WM2487HWM (ABWEEUS)
WM2487HWMA (ABWEEUS)
WM2487WHM
WM2497HWM
WM2501HVA
WM2501HWA
WM2688HNM (ANBEEUS)
WM2688HNMA (ANBEEUS)
WM2688HWM (ABWEEUS)
WM2688HWMA (ABWEEUS)
WM2801HLA (ARBEEUS)
WM2801HRA (ACREEUS)
WM2801HWA (ABWEEUS)
WM2901HVA
WM3001HPA (APTEEUS)
WM3001HRA (ACREEUS)
WM3001HWA (ABWEEUS)
WM3360HRCA
WM3360HVCA
WM3360HWCA
WM3550HVCA
WM3550HWCA

Installation Instructions

Installation Instructions for 5220FR2008F

Tools Needed:

  • Screwdriver
  • Flat end screwdriver
  • Pliers
  1. Unplug appliance and/or turn off circuit breakers to prevent electrocution.
  2. Turn off water supply from washer
  3. With a pair of pliers, unscrew the cold-water inlet hose. Be careful as water may fall out, a towel is recommended.
  4. With a screwdriver, remove the two lower bracket screws, pull back the top panel and lift off the washer. Taking a picture is recommended to know how the hose and plugs are installed.
  5. Remove the four plugs with flat head screwdriver, remove the wire harness from the clips, with pliers slide the hose clamps, place towel under water valve and with flat head screwdriver remove the hose.
  6. Remove the two screws holding the valve and remove the valve.
  7. To install the new water valve, secure it with two screws.
  8. Install the four hoses and secure the hoses with pliers, remove the towel.
  9. Connect the wire plugs and place the wire harness into the clips.
  10. Place top panel on, push it in and secure it with screws.
  11. Install the water inlet hose and tighten it with pliers. Be careful not to tighten it too much as it may cause a leak.
  12. Turn water supply back on, plug appliance back in and appliance is set to go!
