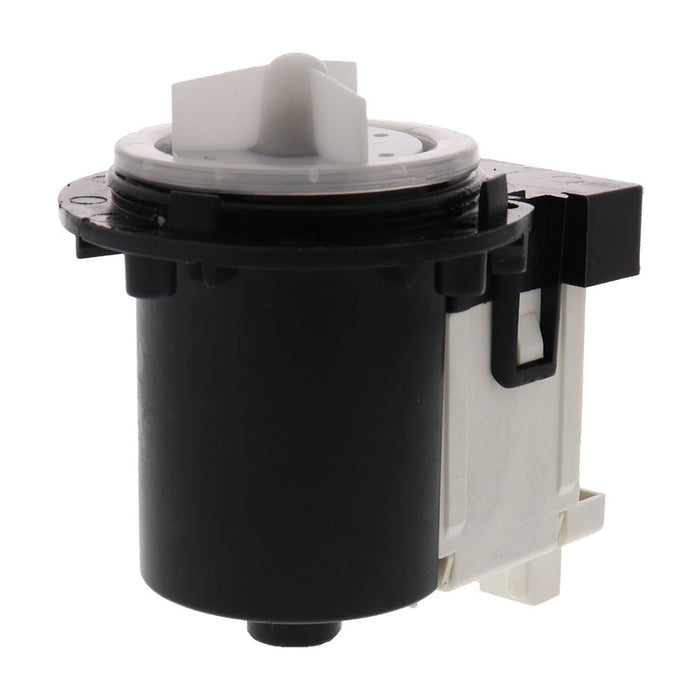

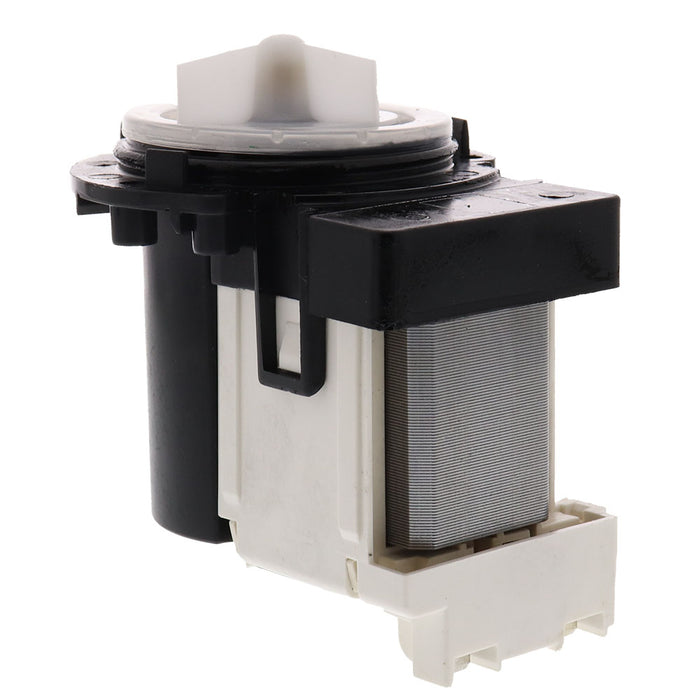

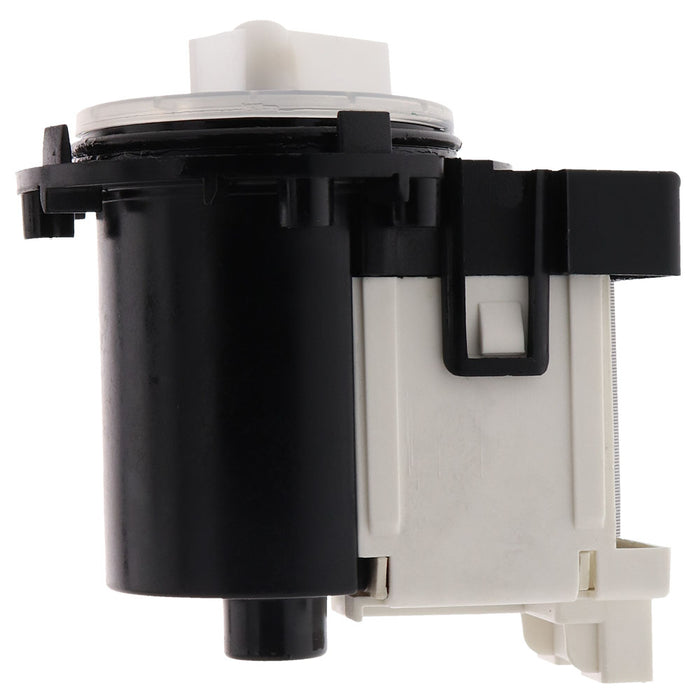

4681EA2001T Washer Pump for LG

by PRYSM
$20.50
SKU 4681EA2001T

Description

  • Cross Reference Information
    4681EA1007G, 2003273, 4681EA1007D, 4681EA2001D, 4681EA2001N, 4681EA2001U, AH3579318, EA3579318, PS3579318, B00M25QM80.
  • Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
  • Compatible with the following Washer brands: LG

Model Numbers

Use ctrl+F then enter your model number in search bar and hit enter

WM2077CW (ABWEEUS) WM2277HB (ABPEEUS) 79640021900
WM2277HW (ABWEEUS) WM2277HS (ATTEEUS) 79640272800
CW2079CWD (ABWEEUS) WM2301HR 79640272900
CW2079CWD (ABWEELC) WM2301HW 79640311900
CW2079CWN (ABWEELC) WM2350HRC 79640318900
CW2079CWN (ABWEEUS) WM2350HWC 79640441900
WD-3243RHD (AOWEEUS) WM2411HW 79640448900
WD-3245RHD (AMSEEUS) WM2450HRA 79640512900
WD-3274RHD (AOWEEUS) WM2455HW 79641022900
WM0001HTMA (ASTEEUS) WM2487WHM 79641029900
WM0532HW (ABWEEUS) WM2497HWM 79641722010
WM0642HW (ABWEEUS) WM2501HVA 79641728010
WM0742HGA (APGEEUS) WM2501HWA 79642192900
WM0742HWA (ABWEEUS) WM2601HL 79642198900
WM1333HW (AOWEEUS) WM2601HR 79642199900
WM1812CW (ABWEEUS) WM2601HW 79648842800
WM1814CW (ABWEEUS) WM2650HRA 79648852800
WM1815CS (ATTEEUS) WM2650HWA WM0642HS
WM1832CW (ABWEEUS) WM2655HVA WM1355HR
WM2010CW (ABWEEUS) WM2677HBM WM1355HW
WM2016CW (ABWEEUS) WM2677HWM WM1811CW
WM2032HS (ATTEEUS) WM2701HV WM2011HW
WM2032HW (ABWEEUS) WM2901HVA WM2050CW
WM2042CW (ABWEEUS) WM3001HRA (ACREEUS) WM2140CW
WM2075CW (ABWEEUS) WM3001HWA (ABWEEUS) WM2240CW
WM2101HW (ABWEEUS) WM3050CW WM2250CW
WM2233HD (AFGEEUS) WM3070HRA WM4070HVA
WM2233HS (ATTEEUS) WM3070HWA WM4070HWA
WM2233HU (ABBEEUS) WM3150HVC WM5000HWA
WM2233HW (ABWEEUS) WM3150HWC WM8000HVA
WM4270HVA (00) WM3170CW (00) WM8000HWA
WM4270HWA (00) WM3250HWA WM8500HVA
WM2432HW (ABWEEUS) WM3360HRCA WM9000HVA
WM2442HW (ABWEEUS) WM3360HVCA WM9000HWA
WM2455HG (APGEEUS) WM3360HWCA WM3997HWA
WM2487HRM (ACREEUS) WM3370HRA (00) WM3875HVCA
WM2487HRMA (ACREEUS) WM3370HVA (00) WM3875HWCA
WM2487HWM (ABWEEUS) WM3370HWA (00) WM3885HCCA
WM2487HWMA (ABWEEUS) WM3370HWA (01) WM3885HWCA
WM2496HSM (ATTEEUS) WM3431H WM3987HW
WM2496HWM (ABWEEUS) WM3431HS (AMSEEUS) WM3470HWA
WM2677HSM (ATTEEUS) WM3431HW (AOWEEUS) WM3477HW
WM2688HNM (ANBEEUS) WM3431HW01 WM3485HWA
WM2688HNMA (ANBEEUS) WM3470HVA WM3550HVCA
WM2688HWM (ABWEEUS) WM3470HWA (00) WM3550HWCA
WM2688HWMA (ABWEEUS) WM3632HW (ABWEEUS) WM3455HW
WM2801HLA (ARBEEUS) WM3677HW (ABWEEUS)
WM2801HRA (ACREEUS) WM3988HWA (ABWEEUS)
WM2801HWA (ABWEEUS) WM3997HWA (00)
WM3001HPA (APTEEUS) WM3455HS

Installation Instructions

Installation Instructions for 4681EA2001T

Installation Instructions – Replacement Drain Pump Motor for SNAP Supply, LLC’s products 4681EA2001T

Tools Needed:

Phillips Screwdriver

Flathead Screwdriver

Pliers

  1. Turn off your washer.
  2. Turn off the water lines to your washer.
  3. Take off the top panel of the washer by unscrewing the bottom 2 screws on the back side of the top panel.
  4. Pull the panel back slightly, until the top panel will lift up and is able to be removed.
  5. Pull out the detergent drawer by pushing down on the center tab in the back of the drawer until it can come out.
  6. Take out the front control panel by unscrewing the 2 screws where the detergent drawer was, then unclip the retaining latches on the top of the control console.
  7. Disconnect the wiring to the board by removing the wires from their clasps, and unplugging the ports from each other, pull the board out and away fully disconnected from the washer unit.
  8. Open the washer door and remove the gasket by taking a flathead screwdriver carefully behind the spring at the bottom of the gasket and working it out from its housing.
  9. Go along entire gasket pulling the wire out, once removed, pull the gasket off.
  10. Reach behind the door, disconnect the door switch, it will be behind the door next to the hinge.
  11. Once disconnected, close the washer door, and open the access panel towards the bottom front of the washer, there is nothing holding it on and it will pop off.
  12. Pull the drainage hose out and drain the washer unit, have a towel or dish ready to catch the water draining from the system.
  13. In the drainage port, take out the screw holding the panel trim in, pull the panel off, and take out the screw on the bottom of the access port.
  14. Take out the 4 screws across the top of the front access panel, carefully lift the front panel off of the washer
  15. Disconnect the hoses from the pump and motor assembly, using pliers to move the clamps off of the hose outlets
  16. Remove the 2 screws that hold the pump and motor assembly in place.
  17. On the bottom of the assembly, depress the tab holding the assembly into place, once depressed, simply remove the assembly from its housing.
  18. Disconnect the wires from the assembly, make sure to note what wires go to what ports.
  19. Unscrew the motor from the assembly, and pull the motor sheath off the old motor unit.
  20. Replace the sheath onto the new motor unit, and set the unit back into the assembly housing, screw back into the assembly.
  21. Put the assembly back into the washer, making sure that the drainage hose goes back out through the port it was in before attaching wires or hoses.
  22. Reattach wire connections, making sure that your connections go to the same ports.
  23. Line the assembly up with the bottom grooves and clasp, and slide it into place.
  24. Screw the assembly back into place.
  25. Reconnect hoses, using pliers as needed to move clamps to seal.
  26. Reattach the circulation hose (Smallest of the 3).
  27. Put the cap back onto the drain hose.
  28. Take the front panel of the washer and place it back onto its housing, screwing it back into position.
  29. Screw in the front panel to the drainage assembly.
  30. Place the panel insert and screw into the drainage assembly.
  31. Replace drain hose into its housing clip and close the access panel.
  32. Reaching behind the door, reconnect the door switch.
  33. Reattach gasket making sure it is in the groove along the entire washer door, then rewire the spring clamp through the entire gasket making sure the spring in on the bottom of the gasket.
  34. Close the washer door.
  35. Reattach the washer console by rewiring the leads through the access hold and snapping the console back into place, reattach wire leads as necessary.
  36. Reattach wires to harness holders.
  37. Put in the detergent drawer screws.
  38. Reinsert the detergent drawer by pushing down on the center back tab and pushing in to close the unit.
  39. Reattach the top panel by first placing it on top, sliding it into place to engage the tension locks.
  40. Screw into place.
  41. Turn water line back on.
  42. Plug appliance back in.
