318984-753 & LA11AA005 Inducer Motor & Blower Wheel Kit for Carrier

by PRYSM
1 review
Save 19%
Original price $79.99
Current price $64.99
SKU 318984-753KIT

Description

  • Cross Reference Information for Inducer Motor (318984-753):
    318984-753. 2347563, 3195827, HC21ZE117, K674, 10704, TJ318984-753, AP5634784, 318984753, 323435-730, 323435730, 323435-724, 323435724, 323435-701, 323435701, HC21ZE114, 321373-712, 321373712, HC21ZE114A, 321373-711, 321373711, 321373-710, 321373710, 321373-709, 321373709, 321373-708, 321373708, 321373-707, 321373707, 321373-706, 321373706, 321373-705, 321373705, 321373-704, 321373704, 321373-702, 321373702, 321373-701 & more!

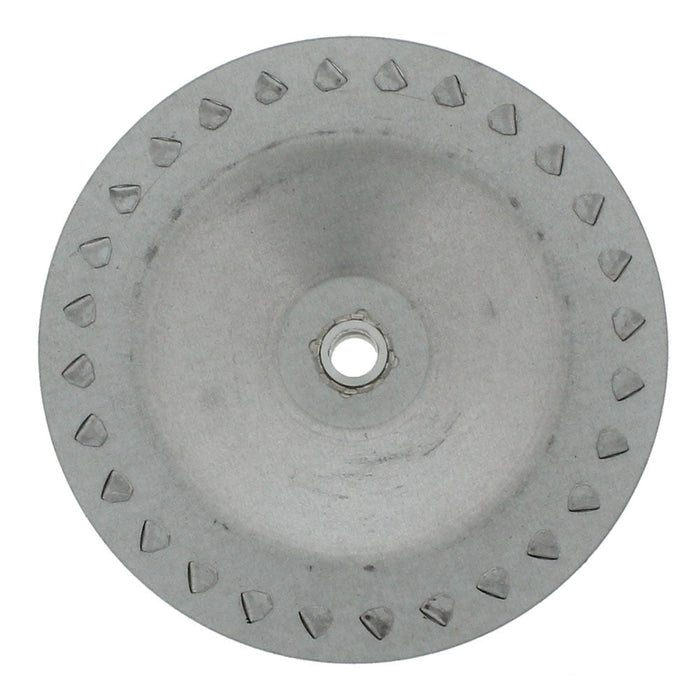

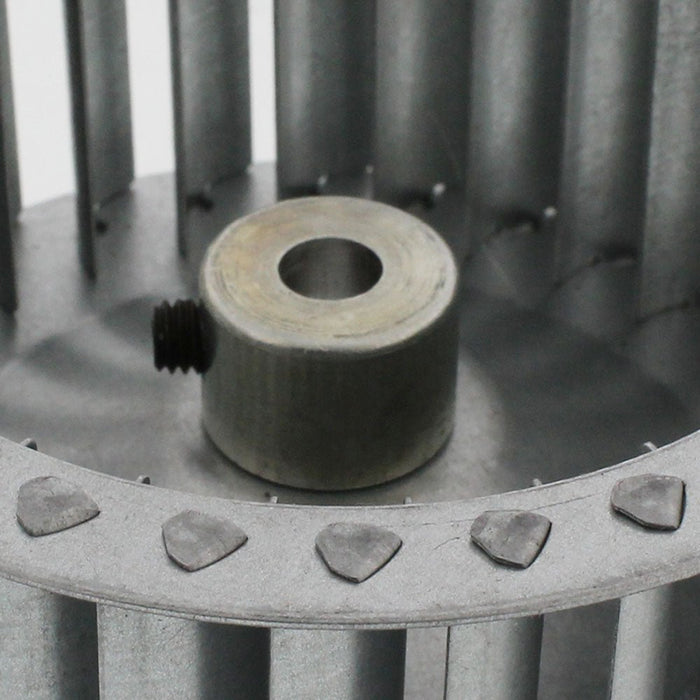

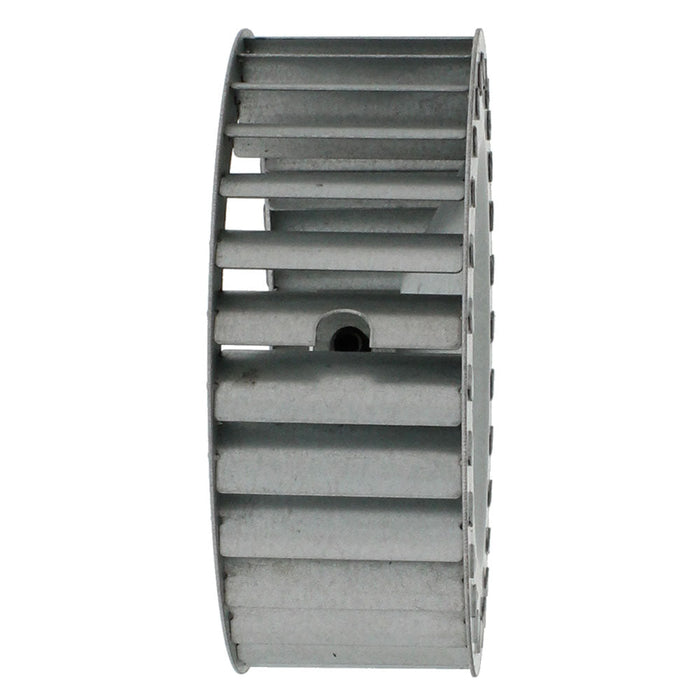

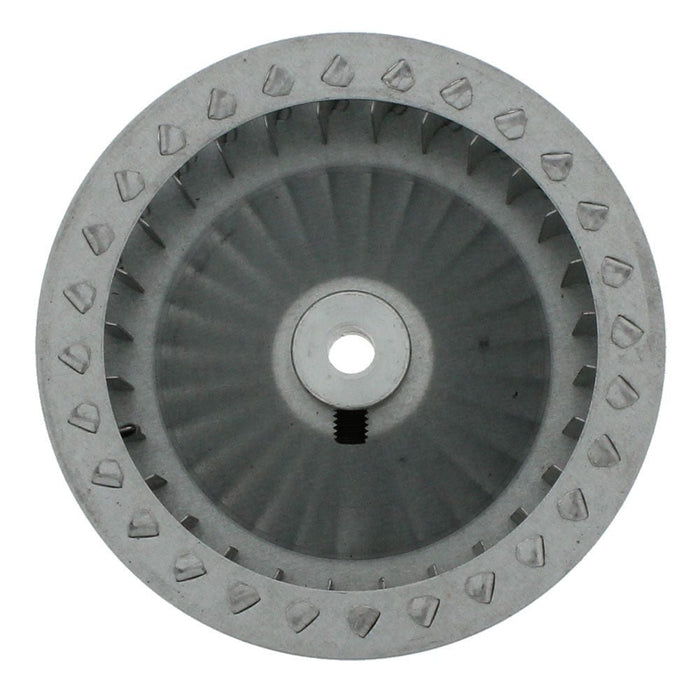

  • Cross Reference Information for Blower Wheel (LA11AA005):
    P441-1146, LA11AA006, LA11AA004
  • Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
  • UPC 769388789494
  • Compatible with the following HVAC brands: Carrier, Bryant, Payne.

Installation Instructions

Installation Instructions for 318984-753

  1. Disconnect electrical power supply to the appliance
  2. Remove the access panel to the HVAC System
  3. Remove motor from housing by removing all the screws holding it in place, typically, 3-4
  4. Pull motor out and unscrew wheel from motor shaft. (there is a gap in the wheel to reach). If you cannot get screw to budge stop here and buy the wheel that goes with it.
  5. If you cannot get the wheel to come off use a saw to cut the shaft from the old motor.
  6. Unscrew the 3 screws holding the motor to the plate plus ground wire
  7. Flip motor over remove 2 screws holding motor to second plate
  8. Take motor out and put new one in place and start screw the 2 plates back on
  9. Once motor is secured to the 2 plates attach the wheel to the shaft. Make sure you test that the wheel is tight and will not slip on shaft!
  10. Attach plastic wheel to back of motor and secure it in place with the metal clips. Hand spin wheel to make sure everything rotates smoothly with no wobble
  11. Install motor back into the HVAC unit attach cords to the 2 terminals and give it a test!

Installation Instructions for LA11AA005

  1. Disconnect electrical power supply to the appliance
  2. remove the access panel to the HVAC System
  3. Remove motor from housing by removing all the screws holding it in place, typically, 3-4
  4. Pull motor out and unscrew wheel from motor shaft. (there is a gap in the wheel to reach). If you cannot get screw to budge stop here and buy the wheel that goes with it.
  5. Make sure you test that the wheel is tight and will not slip on shaft!. Hand spin wheel to make sure everything rotates smoothly with no wobble
  6. Install motor back into the HVAC unit attach cords to the terminals and give it a test!

Return Policy

Items bought from Snap Supply can be returned within 30 days of receipt of shipment. Alterations to Snap Supply products is a violation of the return policy and will result in a nonrefundable product. To ensure your satisfaction with our products please contact us with any questions.

Click here for more about our Return Policy

Free Shipping

Shipping can be expensive, that is why Snap Supply provides free shipping on all orders! No minimum order amounts, that force you to buy something you don't need. Order before 1 PM Eastern and it will ship that same day!

Warranty

Buy with Confidence! Snap Supply Parts always come with a 1 Year Warranty.

Click here to learn more about our Warranty Policy
