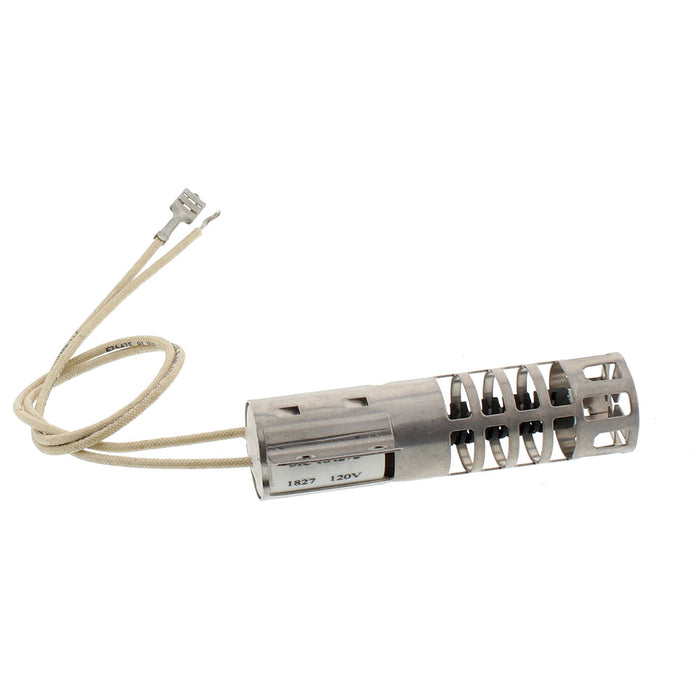

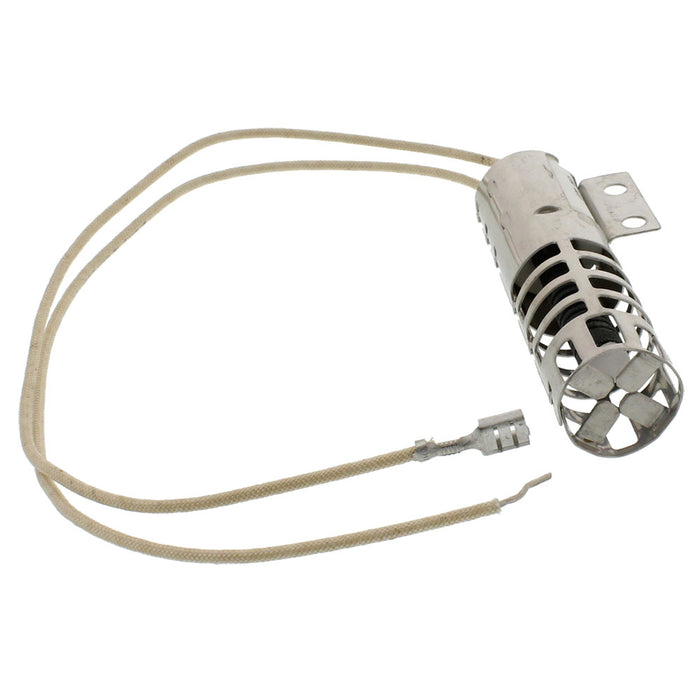

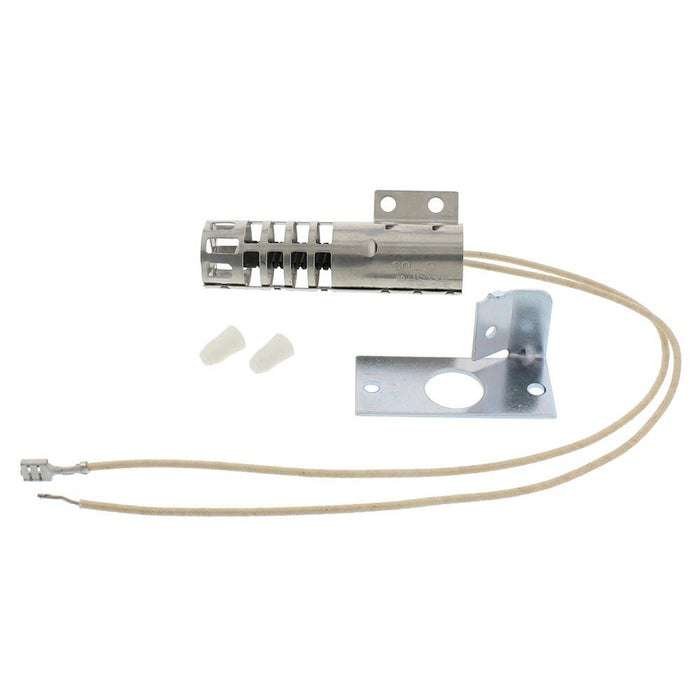

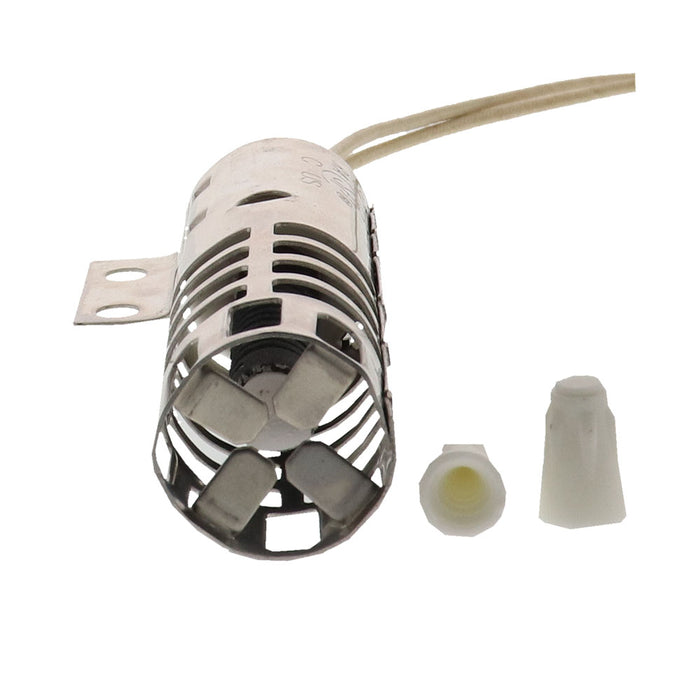

WB2X9154 Range Igniter for GE

by PRYSM
Save 17%
Original price $47.99
Current price $39.99
SKU WB2X9154
  • At Snap Supply, we are proud to offer the quality appliance replacement parts you need for all of your home repair projects. Our range igniter is made from premium materials and compatible with Hotpoint, RCA, and other brands.
  • Cross Reference Information
    1990, 300259, 319887, 4342528, 327617, 330689, 337263, 4336387, 4338008, AH243425, EA243425, PS243425, WB00X6640, WB02X9154, WB13K0001, WB13K0003, WB13K0004, WB13K01, WB13K04, WB13K1, WB13K10027, WB13K3, WB13K4, B004H3XQPM, B004H3XQPM

Model Numbers

Use ctrl+F then enter your model number in search bar and hit enter

JGBP90MEB2BC JGBS12GEN1 JGBP30WEA5WW JGBS15GER4
JGBP30WEW1WW JGBS23BEW2WH JGBP35WEA3WW LGB356WEW3WW
JGBP26WEA1WW JGRS06BEJ1BB JGBP35WEA4WW RGB745BEH7WH
JGBP90MEB3BC JGRS14BEW1BB JGBP79WEA1WW JGBP26GEN2
JGBP35WEW1WW JGSP10GEK2 JGBP86WEA3WW JGBP28BEA3WH
JGBP30BEW1WH JGSP20GEP2 JGBP90MEB1BC JGBP28DED1CT
JGBP30WEA6WW JGSP23WEV1WW JGBP26GEN4 JGBP28SEL1SS
JGBP79WEW1WW JGSP31WET1WW JGBP26WEH1WW JGBP30AEA2AA
JGBP35GEP4 LGB356WEA2WW JGBP30BEA1CT JGBP30BEA2WH
JGBP30AEW1AA RGB628GEN1 JGBP30GEP1 JGBP30BEA6WH
JGBP30WEA4WW RGB628GEV3WH JGBP30GEV2WH JGBP32WEJ1WW
JGBP35WEA7WW RGB745BEA1AD JGBP30WEA2WW JGBP34GEP4
JGBP80MEV4BC RGB745BEA1CT JGBP35AEW1AA JGBP34GEV1WH
JGBP79BEW1BB RGB745BEH7CT JGBP35BEW1BB JGBP35BEA1BB
JGBP26WEW1WW RGB745GES1 JGBP40BEC4WH JGBP35BEA4BB
JGBP30BEW1AD RGB745WEH4WW JGBP80MEV2BC JGBP79AEV3AA
JGBP28BEA6WH RGB746HED1WH JGBP85CEB2CC JGBP86AEA1AA
JGRS14BEW5BB JGBC15GER4 RGB745BEA6WH JGBS16GEP5
JGSP32GEV1BB JGBP25GEN2 RGB745WEA1WW JGBS23GEV4AD
JGBP79WEB2WW JGBP26BEW1WH RGB745WEA3WW JGRP17BEW5BB
RGB745WEA2WW JGBP26WEA6WW RGB745WEA6WW JGRP17WEP1
JGBP30WEA1WW JGBP28BEA3AD JGB910WEC1WW JGSP21GER3WH
JGBP35BEA5BB JGBP28MEL1BS JGBP28DED1WH JGSP22GEV1BB
JGBP79AEW1AA JGBP30GEV3WH JGBP28WEJ1WW JGSP44AEV1AA
JGBP79WEV4WW JGBP30GEV4WH JGBP30BEA2AD RGB745GET1WH
RGB745BEA2AD JGBP31WEC3WW JGBP30CEA1CC EGR2000EC0WW
JGBP24GEN6 JGBP33BEH1BB JGBP33CEH5CC JGBP24BEA2WH
JGBP26WEA3WW JGBP33SEH5SS JGBP33WES2 JGBP24BEW1AD
JGBP90MEA3BC JGBP34WEW1WH JGBP34GEP2 JGBP24BEW1WH
JGBP26GEN6 JGBP35AEA3AA JGBP35BEA7BB JGBP24GEV2WH
JGBP34GEP3 JGBP35CEA3CC JGBP35GEP2 JGBP28BEA1CT
JGBP79AEA1AA JGBP35WEA5WW JGBP35GEP3 JGBP28BEA2WH
JGBP90MEB4BC JGBP35WEV1WW JGBP35WEV2WW JGBP28BEW1WH
JGSP33WEV1WW JGBP40WEC3WW JGBP35WEV3WW JGBP28GEV1WH
RGB745WEV3WW JGBP79BEA2BB JGSP31GER3WG JGBP30AEA1AA
JGBP35WEA2WW JGBP79WEB3WW RGB745BEA1WH JGBP30BEA5AD
JGBP35WEV4WW JGBP85BEB2BB RGB745BEA2WH JGBP30DEA2WH
RGB745GEV3WH JGBP85WEB3WW RGB745BEA4WH JGBP33CEH3CC
JGBP26WEA4WW JGBP86WEA1WW RGB745WEH7WW JGBP34GEP1
JGBP26WEH2WW JGBS12GER4 JGBP24GEN4 JGBP34GEP5
JGBP30BEA1WH JGBS15GEN1 JGBP28BEA1WH JGBP34GEV1AD
JGBP30WEA3WW JGBS15GER3 JGBP28TED1WW JGBP34GEV3WH
JGBP30WEV4WW JGRP17WEW5WW JGBP30BEA4WH JGBP40BEC1CT
JGBP32GES2 JGRP20WEJ1WW JGBP33WEH3WW JGBP40BEC3WH
JGBP33BEH3BB JGRS14BEW2BB JGBP35BEA2BB JGBP40WEC4WW
RGB745BEA3WH JGRS14GEP2BG JGBP35WEA1WW JGBP79BEB3BB
JGBP24GEN1 JGRS14GET1BB JGBP40BEC2WH JGBP79GEV4BB
JGBP25GEN7 LGB356GEV3WH JGBP79AEV4AA JGBP79WEA2WW
JGBP26WEA2WW RGB524EN1 JGBP79GEV1BB JGBP85WEA2WW
JGBP30GEP5 RGB528ER2 JGBS02EN1 JGBP86BEA1BB

Installation Instructions

Installation Instructions for WB2X9154

Installation Instructions – Replacement Range Igniter for SNAP Supply, LLC’s products WB2X9154

Tools Needed:

Phillips Head Screwdriver

Flathead Screwdriver

Nut Driver

Wire Stripper

To Begin

  1. Unplug your oven.
  2. Turn off the gas line to your oven.
  3. Remove your oven door by opening it slightly then lifting it up off its hinges.
  4. Pull the oven racks out of the oven.

Bottom Igniter

  1. Complete steps 1-4 of To Begin.
  2. Remove the oven bottom by unscrewing the 2 screws in the back of the oven, and pulling out from under the lip in the front, then removing.
  3. Remove oven drawer, draw out, lift up, and pull away.
  4. Behind where the drawer was is the gas valve. Note the 2 wire leads to the left of the exhaust, and the channel of wiring to the right of the gas valve.
  5. Disconnect the wire lead to the back left of the gas valve.
  6. Of the channel of wiring to the right of the valve, there should be one leading up towards the burner instead of down, take that wire and pull to expose the heading connection, disconnect it from its heading.
  7. Using the nut driver, remove the 2 bolts holding the burner in place.
  8. Using the nut driver, unscrew the bolts holding the burner element in place from the front of the oven.
  9. Once unscrewed, remove the burner unit from the oven.
  10. Using the nut driver, unscrew the igniter from the burner element.
  11. With the new igniter element, cut the lead wires leaving 2 to 4 inches of space between the cut and any port or connection.
  12. With the wire still attached to the igniter, strip the wire to remove a section of sheathing from the wire line.
  13. Splice the wires together using a connection cap, once the wires are spliced, reattach the igniter and burner assembly back together using bolts.
  14. Replace the burner element in the oven, putting it back in correct placement and threading the wire leads through to the gas valve.
  15. Connect the appropriate leads to the connections, screw burner back into place by gas valve
  16. Put drawer back into oven, tilt as necessary to get it back into place.
  17. Lower oven bottom back into position in the oven, screw the plate back into place.

Upper Igniter

  1. Complete steps 1-4 of To Begin.
  2. Unscrew 2 bolts attaching igniter to burner.
  3. Unscrew the bolt holding the igniter to the back of the oven interior.
  4. On the back of the oven, unscrew the cover holding the igniter plug.
  5. Disconnect the igniter plug and push the wire leads through to the interior of the oven.
  6. On the old igniter, cut the plug off of the igniter, leaving one wire about half an inch longer than the other.
  7. On the cut plug ends and the wire ends of the new igniter, strip the wires and splice the wires together with caps.
  8. Thread the wire connection through the back of the oven, screwing in the small plate back into the oven interior where the wire leads are.
  9. Attach the igniter to the burner with 2 bolts.
  10. Connect the plug and make sure the insulation is as undisturbed as possible.
  11. Replace cover and screw back in screws to cover hole and igniter plug.

To Finish

  1. Put oven grates back into position in the oven interior.
  2. Place oven door back into position by sliding it down onto the hinges.
