Description

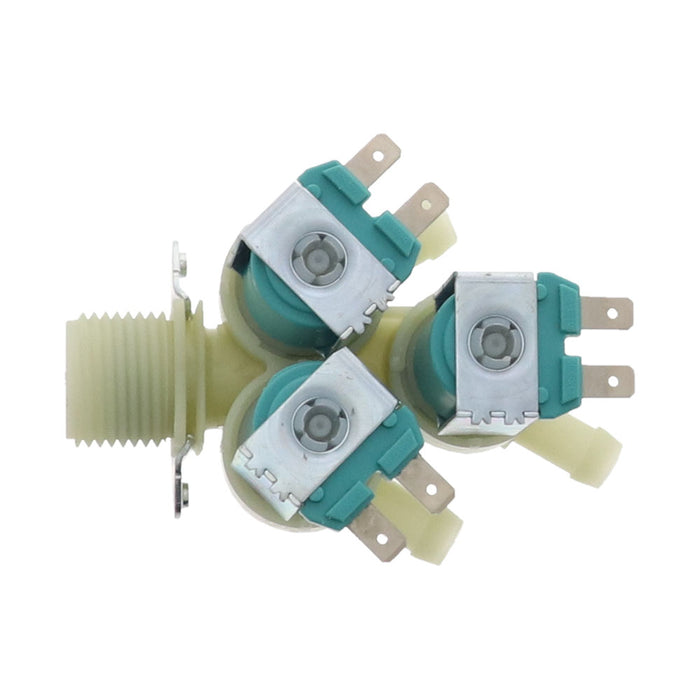

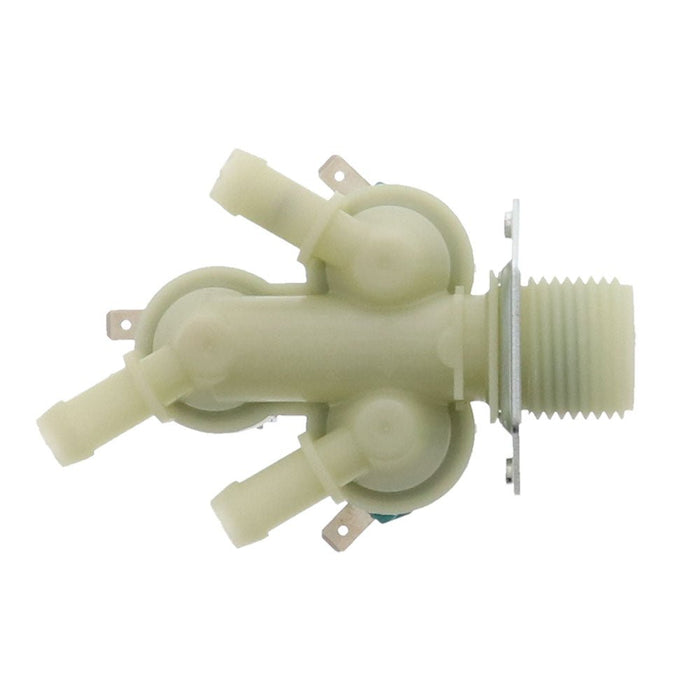

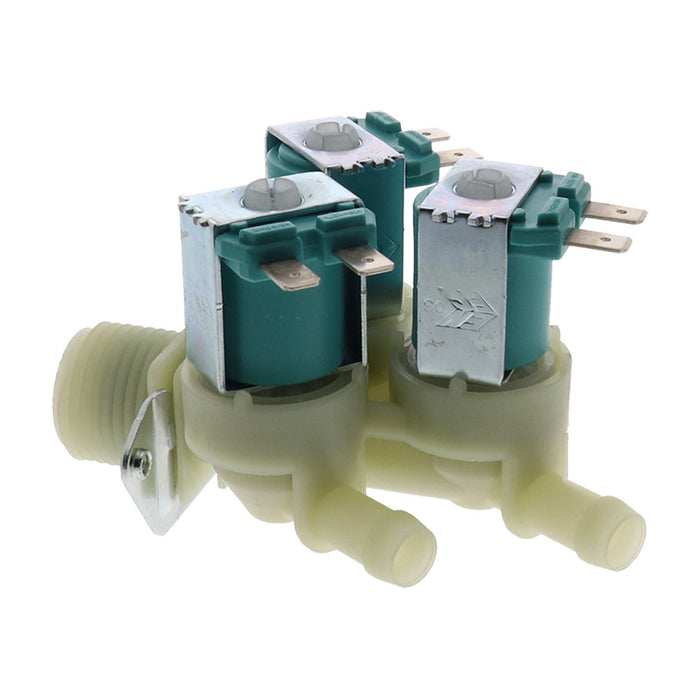

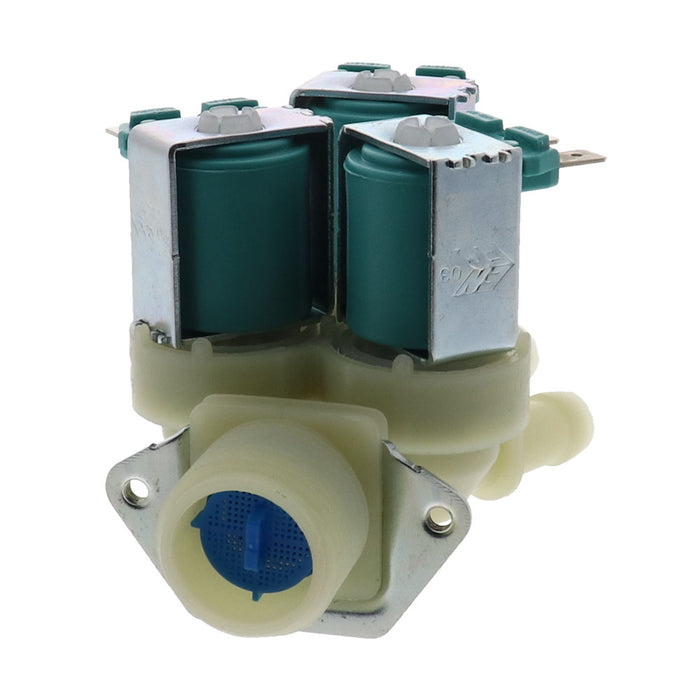

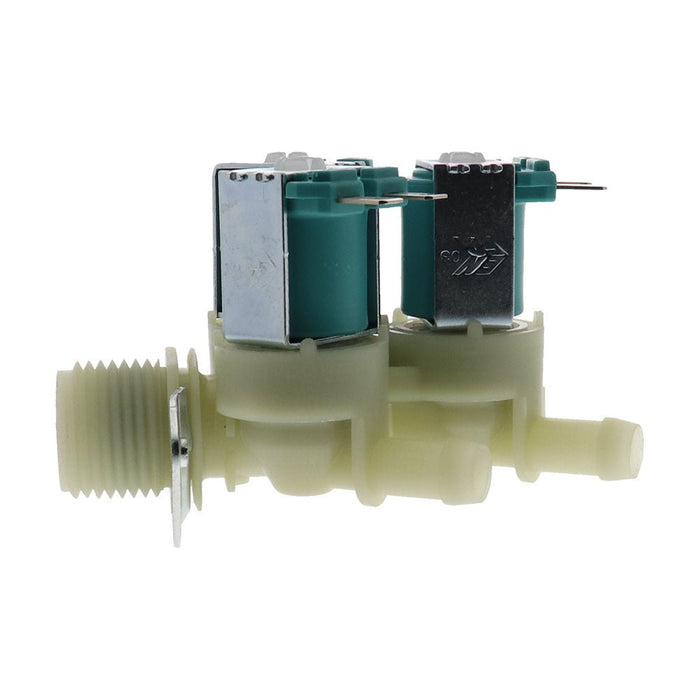

This part is responsible for letting water into the washing machine. These parts might need replacement if your washer is not filling properly, or if it isn’t filling at all.
- UPC #: 810019171796
-
Cross Reference Information
5220FR2075L, 5221ER1003A, 5221ER1003C, 5221ER1003D, 5221ER1003F, PS11728995, B01GXOY74Q.
- Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
- Click here for installation instructions!
- Compatible with the following Washer brands: LG
- ASIN #: B07B4LXY7Y
Just because parts look the same does not mean that they are the same. Use the model numbers below to ensure that this part is compatible with your appliance!
All Snap parts come with installation instructions to help you with your repair. If you need more help, you can always contact us for further assistance. Email us at support@snap.parts or give us a call at 1-877-269-0086.
Model Numbers
Use ctrl+F then enter your model number in search bar and hit enter
| WM2077CW (ABWEEUS) |
| WM2277HW (ABWEEUS) |
| 79640021900 |
| 79640272800 |
| 79640272900 |
| 79640311900 |
| 79640318900 |
| 79640512900 |
| 79640518900 |
| 79641532110 |
| 79641538110 |
| WM1812CW (ABWEEUS) |
| WM1814CW (ABWEEUS) |
| WM1815CS (ATTEEUS) |
| WM2010CW (ABWEEUS) |
| WM2016CW (ABWEEUS) |
| WM2050CW |
| WM2075CW (ABWEEUS) |
| WM2101HW (ABWEEUS) |
| WM2140CW |
| WM2233HD (AFGEEUS) |
| WM2233HS (ATTEEUS) |
| WM2233HU (ABBEEUS) |
| WM2233HW (ABWEEUS) |
| WM2240CW |
| WM2250CW |
| WM2277HB (ABPEEUS) |
| WM2277HS (ATTEEUS) |
| WM2301HR |
| WM2301HW |
| WM2350HRC |
| WM2350HWC |
| WM2455HG (APGEEUS) |
| WM2455HW |
| WM2496HSM (ATTEEUS) |
| WM2496HWM (ABWEEUS) |
| WM2601HL |
| WM2601HR |
| WM2601HW |
| WM2650HRA |
| WM2650HWA |
| WM2655HVA |
| WM2677HBM |
| WM2677HSM (ATTEEUS) |
| WM2677HWM |
| WM2701HV |
| WM3050CW |
| WM3070HRA |
| WM3070HWA |
| WM3150HVC |
| WM3150HWC |
| WM3170CW (00) |
| WM3250HRA |
| WM3250HVA |
| WM3250HWA |
| WM3370HRA (00) |
| WM3370HVA (00) |
| WM3370HWA (00) |
| WM3370HWA (01) |
| WM3470HVA |
| WM3470HWA (00) |
| WM3470HWA |
| WM4070HVA |
| WM4070HWA |
| WM4270HVA (00) |
| WM4270HWA (00) |
| WM5000HWA |
| WM8000HVA |
| WM8000HWA |
| WM8500HVA |
| WM9000HVA |
| WM9000HWA |
Installation Instructions
Installation Instructions for 5221ER1003A
Tools Needed:
- Unplug appliance and/or turn off circuit breakers to prevent electrocution.
- Turn off water supply.
- Remove water fill hose with pliers, set aside. Remove lower screws that hold the bracket to the body of the washer, pull the top and lift.
- Make sure to know where the wires and tubes go. Recommended to take a picture and/or mark the hose with a marker. Pull out wire harnesses, place a towel under the hose and with pliers remove the clamps and pull the hoses off.
- Remove the two screws that secure the valve in place and remove the valve.
- To replace the valve, place the water valve in, and place the screws back on.
- Place the water hoses back on and place clamps back on. Reattach the wire harness.
- Place the top back on, replace the screws and reattach the water fill hose.
- Turn water supply on, turn on appliance, and installation is complete.
