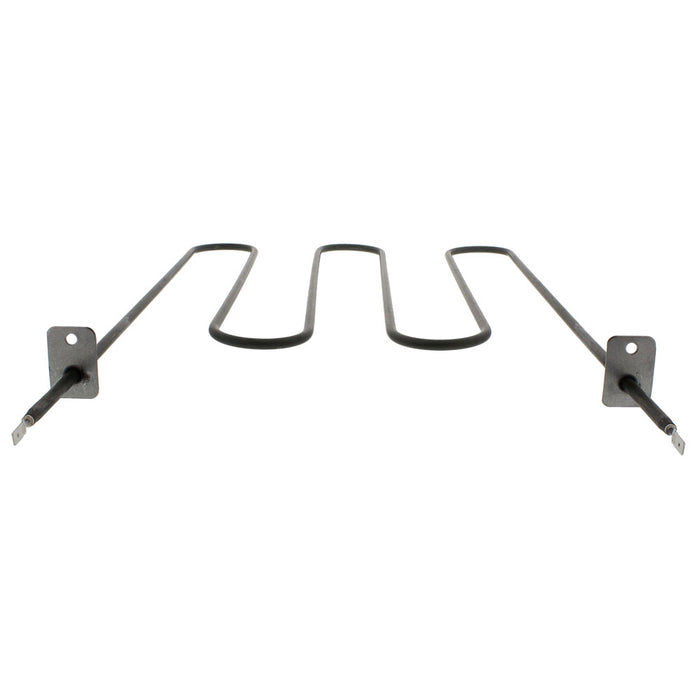

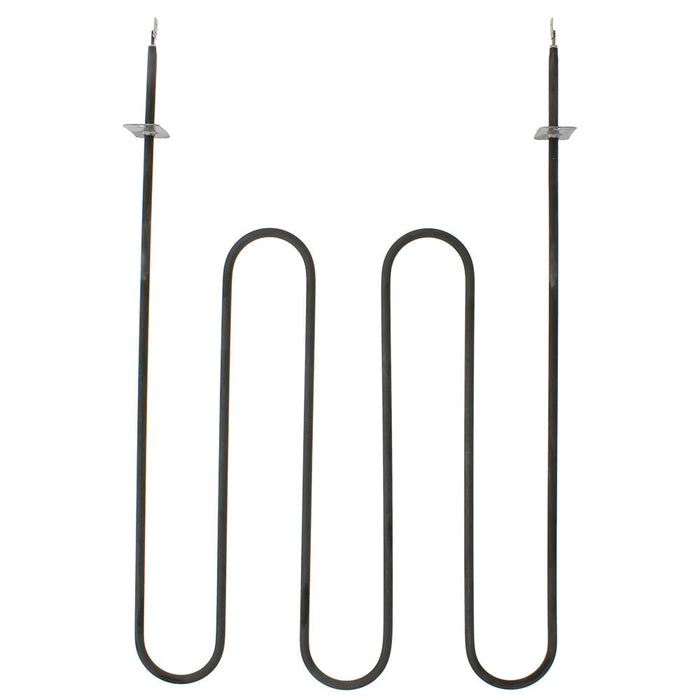

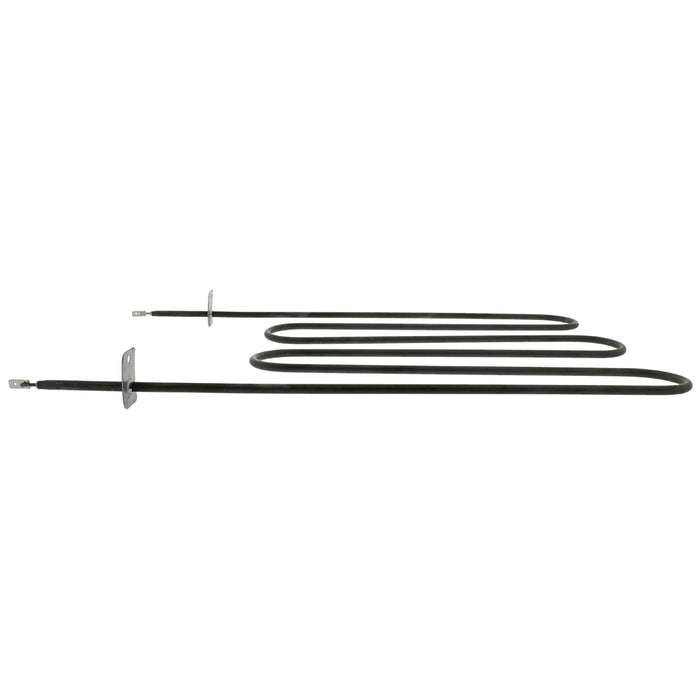

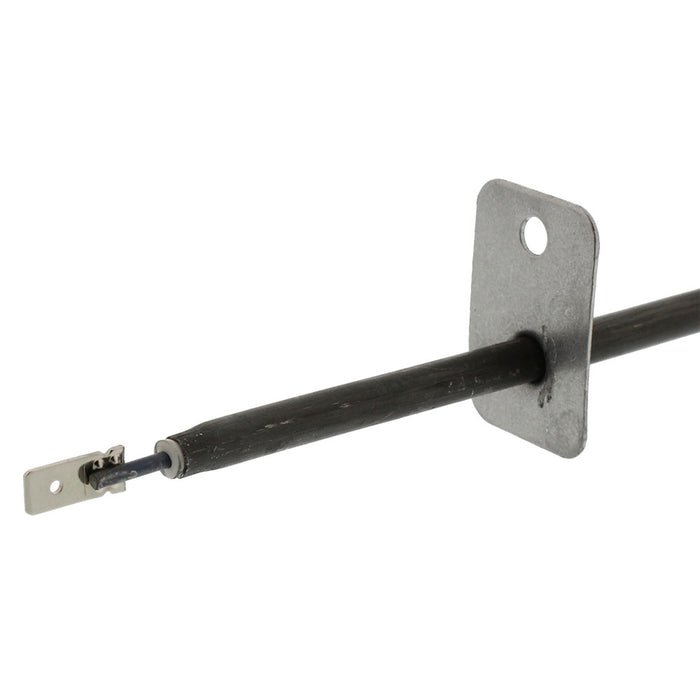

316203301 Broil Element for Frigidaire

Use ctrl+F then enter your model number in search bar and hit enter

Installation Instructions for 316203301

Tools Needed:

• Flat head screwdriver
• Quarter inch nut driver

1. Unplug appliance and/or turn off circuit breakers to prevent electrocution.
2. *Make sure the wires from the terminal do not fall back into the oven wall.
3. Open oven door, remove oven racks. It is recommended to remove the oven door for personal protection. Remove the screws stoppers on each hinge, grab the door, lift and set aside.
4. Remove the two screws holding the element, remove the two screws from the rear bracket, remove the element until you see the terminals. Be careful the wires do not fall back into the oven wall.
5. With a flat head screwdriver remove the wires from the terminals. Be careful the wires do not fall back into the oven wall.
6. To place the new broil element, place the wires on the terminals.
7. Install the element and secure the support bracket with the two screws. Replace the two rear screws to secure the element.
8. Replace the door and lock both stoppers, replace racks and close oven door.
9. Plug in appliance and oven is all set!
