279838 3392519 279973 Dryer Heating Element and Thermostat Kit for Whirlpool

by PRYSM
Original price $0.00 - Original price $0.00
Original price $0.00
$44.82
$44.82 - $44.82
Current price $44.82

Same Day Shipping

Monday - Friday order before 3 p.m. If you place your order outside these times, call us at 1-802-727-4126 and we will do our best to get it out the door.

Delivery Time

Average delivery times range 1-3 days


Shipping Info

Same Day Shipping

If you place your order between Monday - Friday before 3 p.m., your order will be shipped on that day. If you order on Saturday before 12 p.m., your order will be shipped on that day. If you place your order outside these times, call us at 1-802-727-4126 and we will do our best to get it out the door.



Quick Delivery, All Over The Country



We Stay On Top of It

We are using the most reliable options available. Even though all major carriers are experiencing delays, we are always happy to help. If you have a question about the status of your shipment, call us directly for the quickest response at 1-802-727-4126.


We’re Always Happy to Help

Our support team can be contacted via email at Suppot@snap.parts, or you can call us at 1-802-727-4126 during business hours. In the event that you need support outside of business hours, snap.parts has an instant message support chat that can help you solve any problem.

Description

Dryer problems? Fix the problem and the symptoms with the dryer heating element and thermostat kit.

The kit contains:

  • Dryer Element
  • Thermostat
  • Thermal Fuse

If your clothes are still wet after running through the dryer, it might need a new dryer element. But your element might need new thermostats. Otherwise, your element could burn out again!

The dryer element is responsible for heating up the dryer so it can dry your clothes. But it’s your dryer’s thermostats that are responsible for regulating the heat of the element.

Old thermostats are one of the most common causes for burned out dryer elements: they tell the element to heat up but don’t tell it to cool down, resulting in a burned out element.

That’s why we created this kit. It comes with both the dryer element and replacements for each thermostat in your dryer. This way, in one repair, you can replace both.

  • This kit comes with 1 Dryer Heating Element (279838), 1 Thermal Fuse (3392519), and 1 Dryer Thermostat (279973)

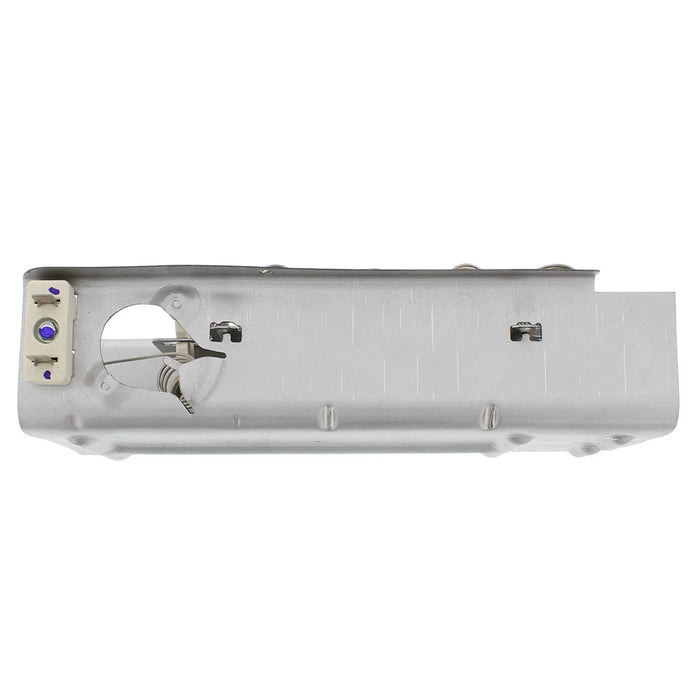

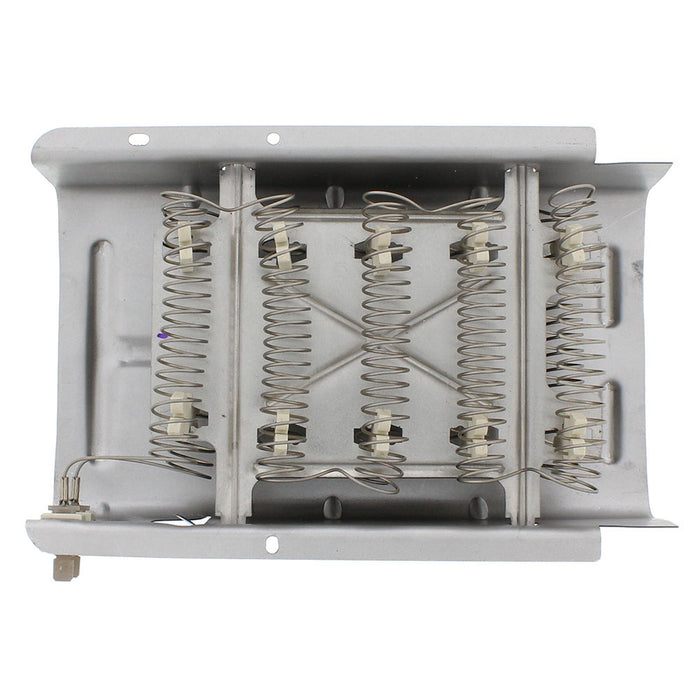

  • Cross Reference Information for 279838 (Heating Element):
    2438, 279837, 279838, 279838A, 279838VP, 3398064, 3403585, 8565582, AP3094254, W10724237.

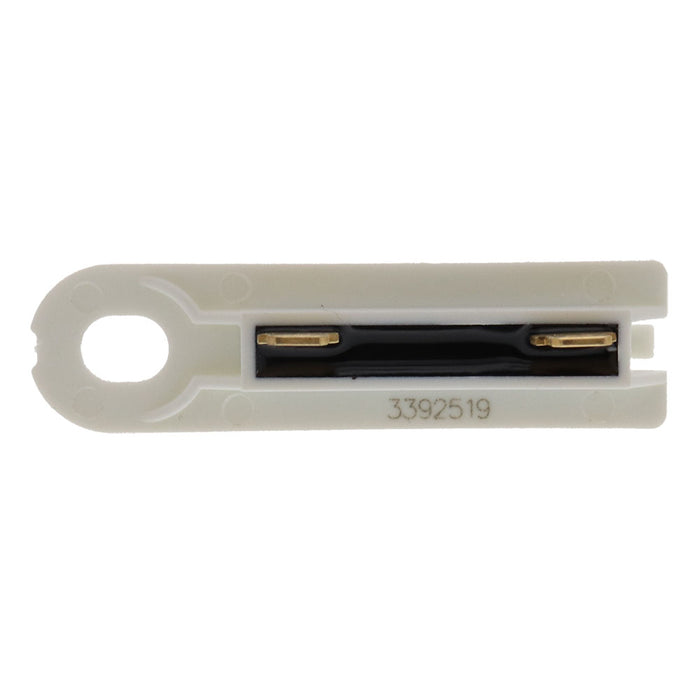

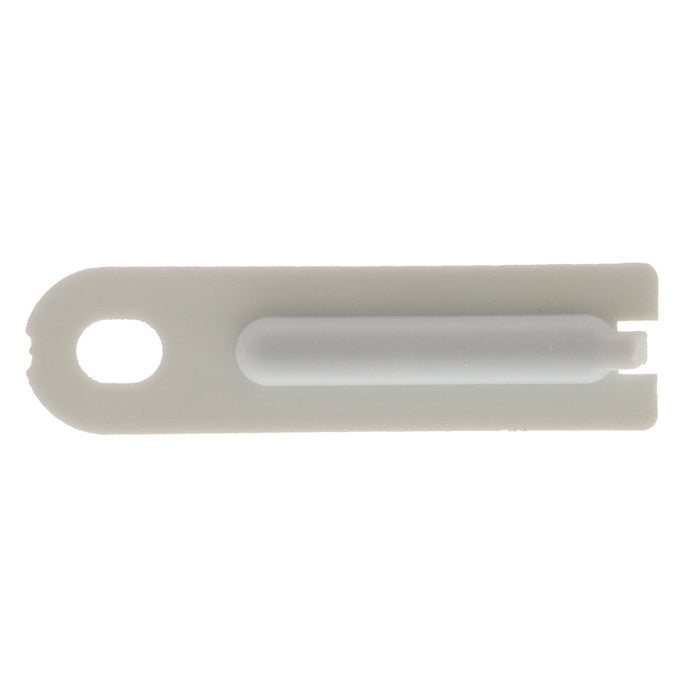

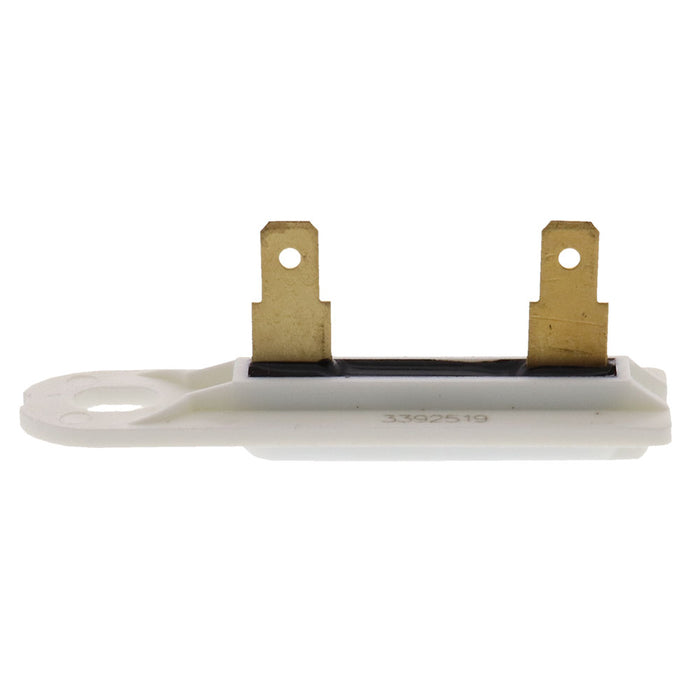

  • Cross Reference Information for 3392519 (Thermal Fuse):
    3392519, 3388651, 694511, 80005, ET401, PS11741460, WP3392519VP, B071ZPDCVY, B00MZH0R4U, B00PDXA2CA, B0081EATSK, B011BWTX0S, B015YW8DJS, B008DK2NOK, B011OBNJLK, B00MZH0RZ4, B00IQ9VQL4, B011OBMGF0, B011OBN0X2, B00MZH0OPC, B00QMHDWUU, B00PDXA0KE, B0156N9Q1O, B000NCTOUM, B011BWTQ82, B00MZH0RK4.

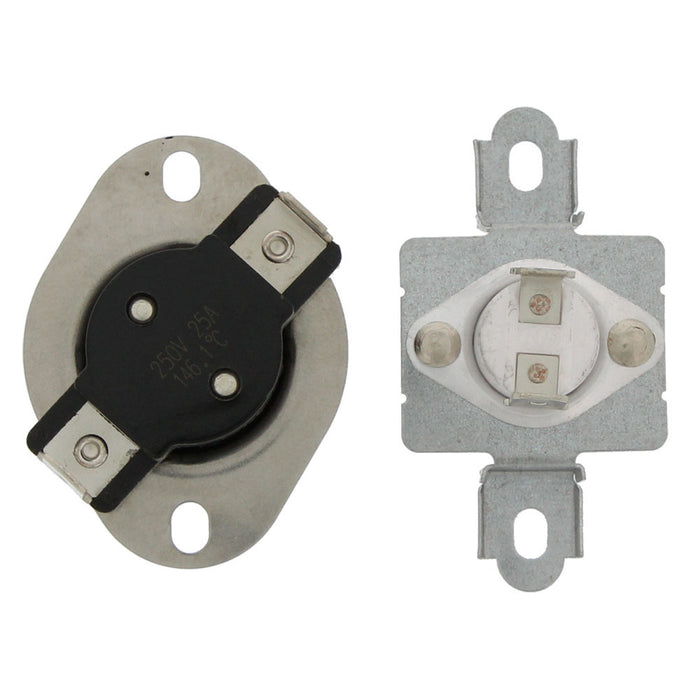

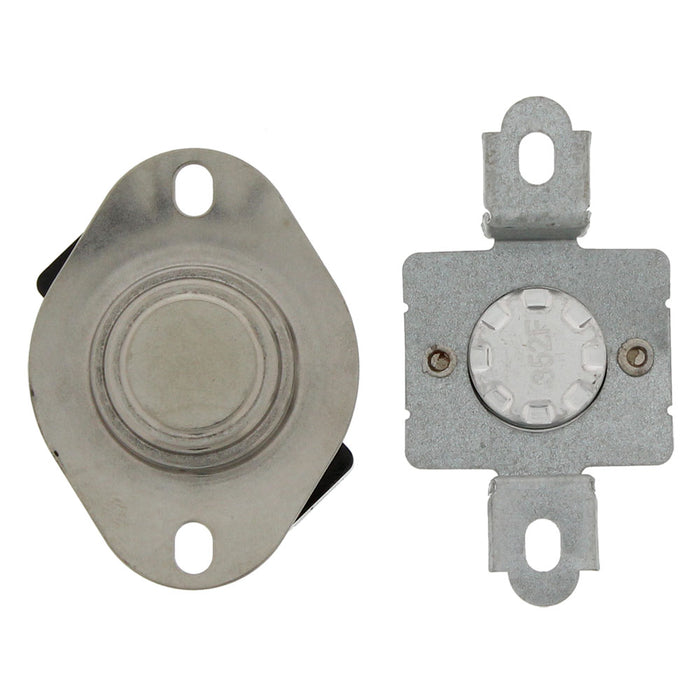

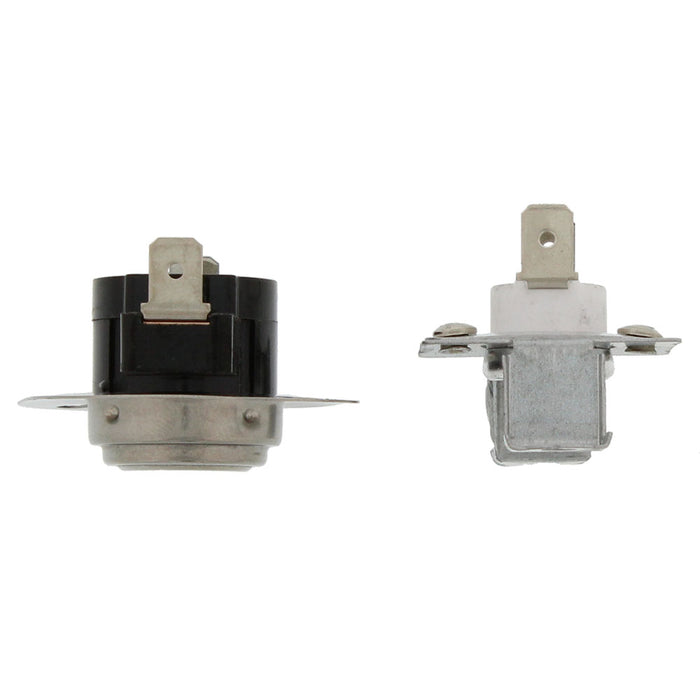

  • Cross Reference Information for 279973 (Dryer Thermostat):
    279973, AP3094323, 3391913, 3404151, 3404152, 3977395, 8318314, 897710, AH334387, EA334387, PS334387.
  • Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
  • Compatible with the following brands: Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper.

Just because parts look the same does not mean that they are the same. Use the model numbers below to ensure that this part is compatible with your appliance!

All Snap parts come with installation instructions to help you with your repair. If you need more help, you can always contact us for further assistance. Email us at support@snap.parts or give us a call at 1-877-269-0086.

Model Numbers

For 279838, click here then click on Model Numbers tab below the product pictures.

For 3392519, click here then click on Model Numbers tab below the product pictures.

For 279973, click here then click on Model Numbers tab below the product pictures.

Installation Instructions

Installation Instructions

Generic instructions based on common refrigerator models

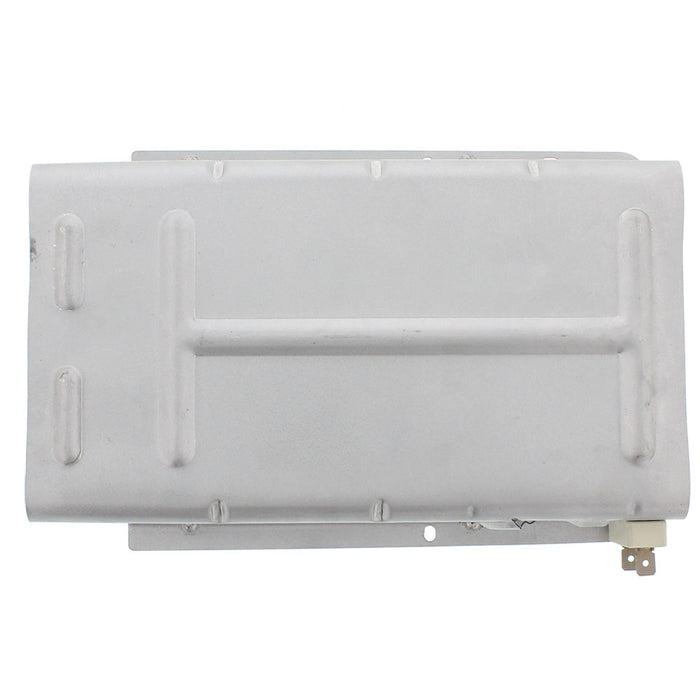

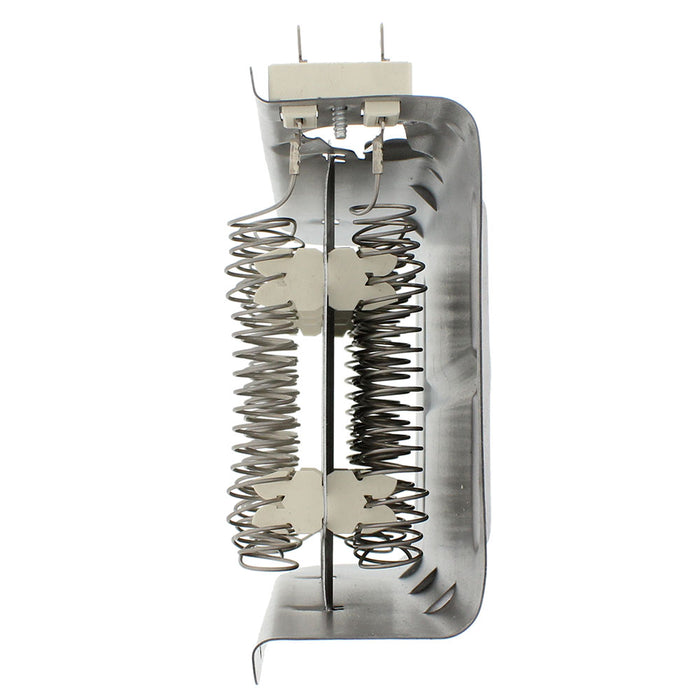

For 279838 (Heating Element):

  1. Disconnect electrical power supply to the appliance
  2. Remove back panel off of the dryer by removing all the screws
  3. Find the heating element and take a picture of the wires
  4. Remove all the wires attached to the heating element/thermostat
  5. Remove the screws and remove the heating element from the heating tube
  6. Take the thermostat off of the old element if you are not replacing it
    1. You can remove the thermostat by pulling it off of the terminal and sliding the element tab out of the hole on the thermostat
  7. Place thermostat on new element by sliding element tab through the thermostat hole and sliding it onto the terminal
  8. Place element back onto the heating tube and secure with the screws
  9. Attach all wires to their original location on the thermostat and element
  10. Place back panel back on and secure with screws
  11. Test dryer under supervision

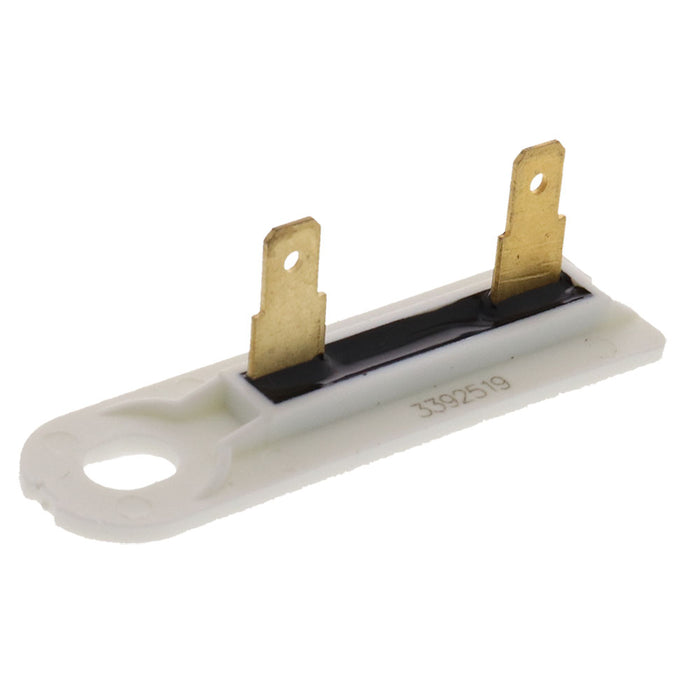

For 3392519 (Thermal Fuse):

  1. Unplug appliance and/or turn off circuit breakers to prevent electrocution.
  2. Using a ¼ inch nut driver remove all the screws that hold the back panel and small access panel can be lifted out. Remove access panel first then the big back panel.
  3. To pull out the thermal fuse, pull out the two wires connected to it. Remove ¼ inch screw.
  4. Make sure to clean off the vent.
  5. With the new thermal fuse, push in the notch located at the bottom first, then replace screw, reconnect wires, place large back panel first, then the access panel, replace the screws that hold the panel.
  6. Turn on appliance.

    Tools Needed:
    ¼ inch nut driver

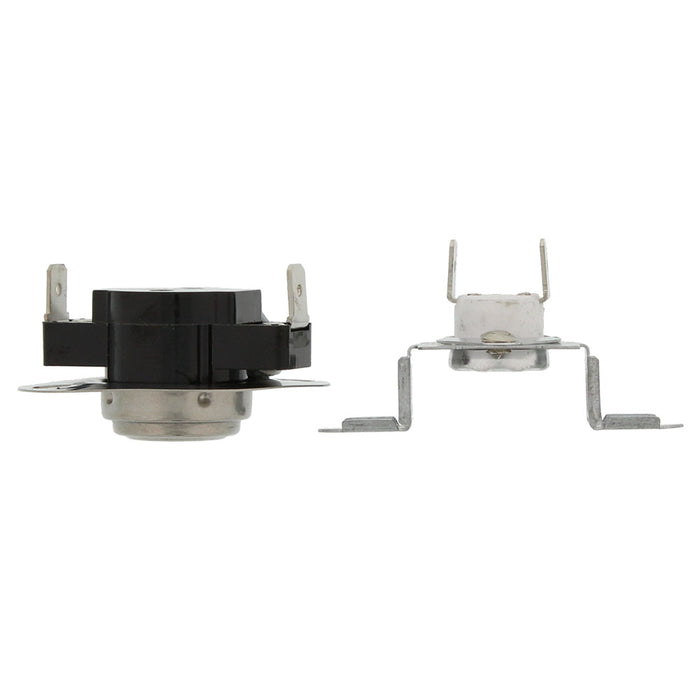

For 279973 (Dryer Thermostat):

  1. Disconnect electrical power supply to the appliance
  2. remove the access panel to on the bottom of the dryer
  3. Remove wires from the high limit thermostat and thermostat cut off.
    To remember where the wires went use tape to mark them top or bottom
  4. After wires have been disconnected, remove the 4 screws that hold the thermostats in place
  5. Once you have them out, replace them with the kits thermostats.
  6. Attach the wires to the new thermostats
  7. Restore electrical power and test the dryer.
